SmallPC Industrial Fanless Mini PC H3-J4125
The Mini PC H3 is a unique multi-purpose mini-computer that can be used for industrial, commercial or home use, with a compact design that improves
portability, reliability and reduces power consumption for a great user experience.
H3-J4125 Highlights:

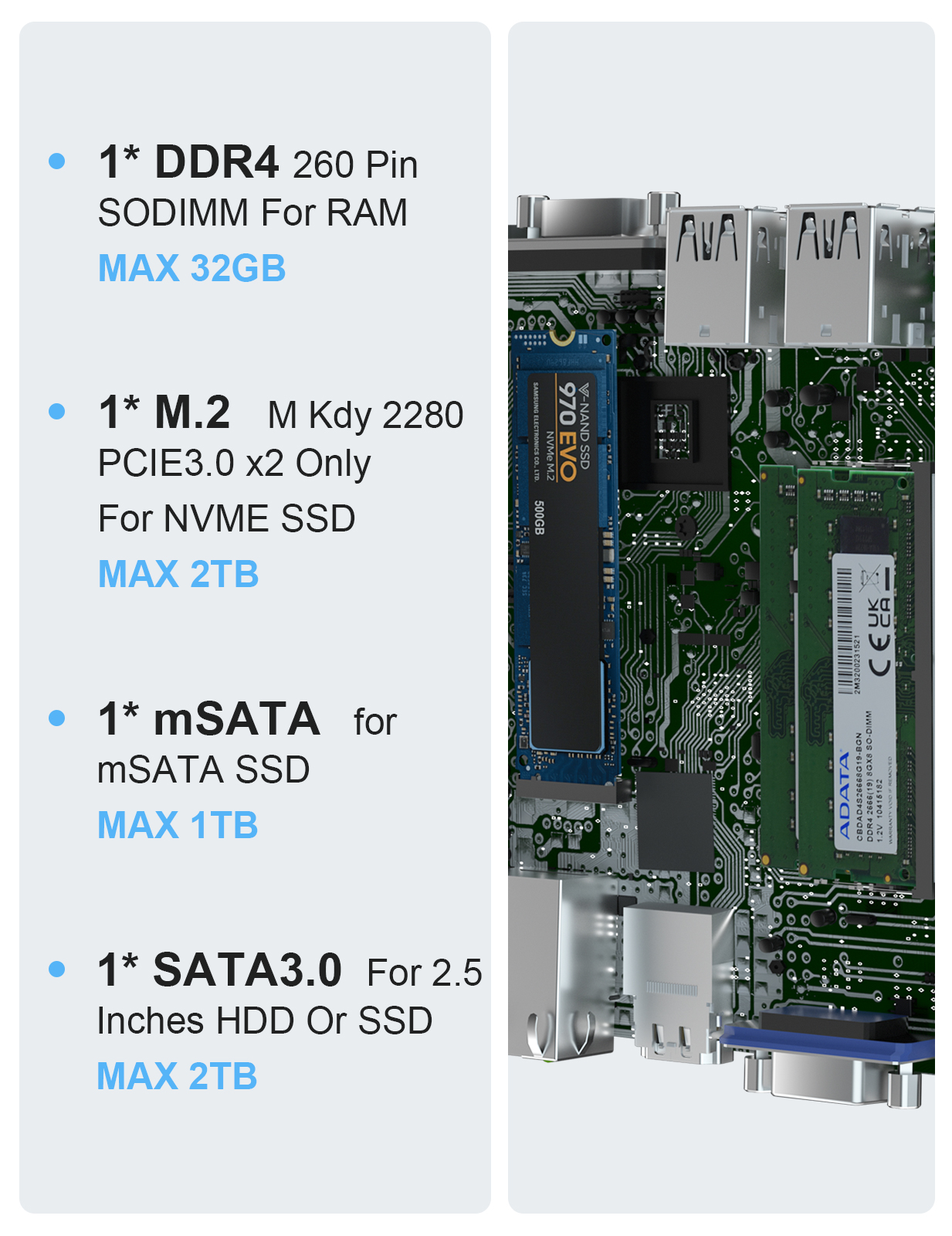

[Memory & Storage] Memory types:Single DDR4L. Storage:1 x SATA3.0,1x mSATA slot.
[Efficient processing & Win 11 system] Equipped with Celeron J4125 CPU, it supports multitasking and all kinds of games,installed with Win10 Pro 64Bit.

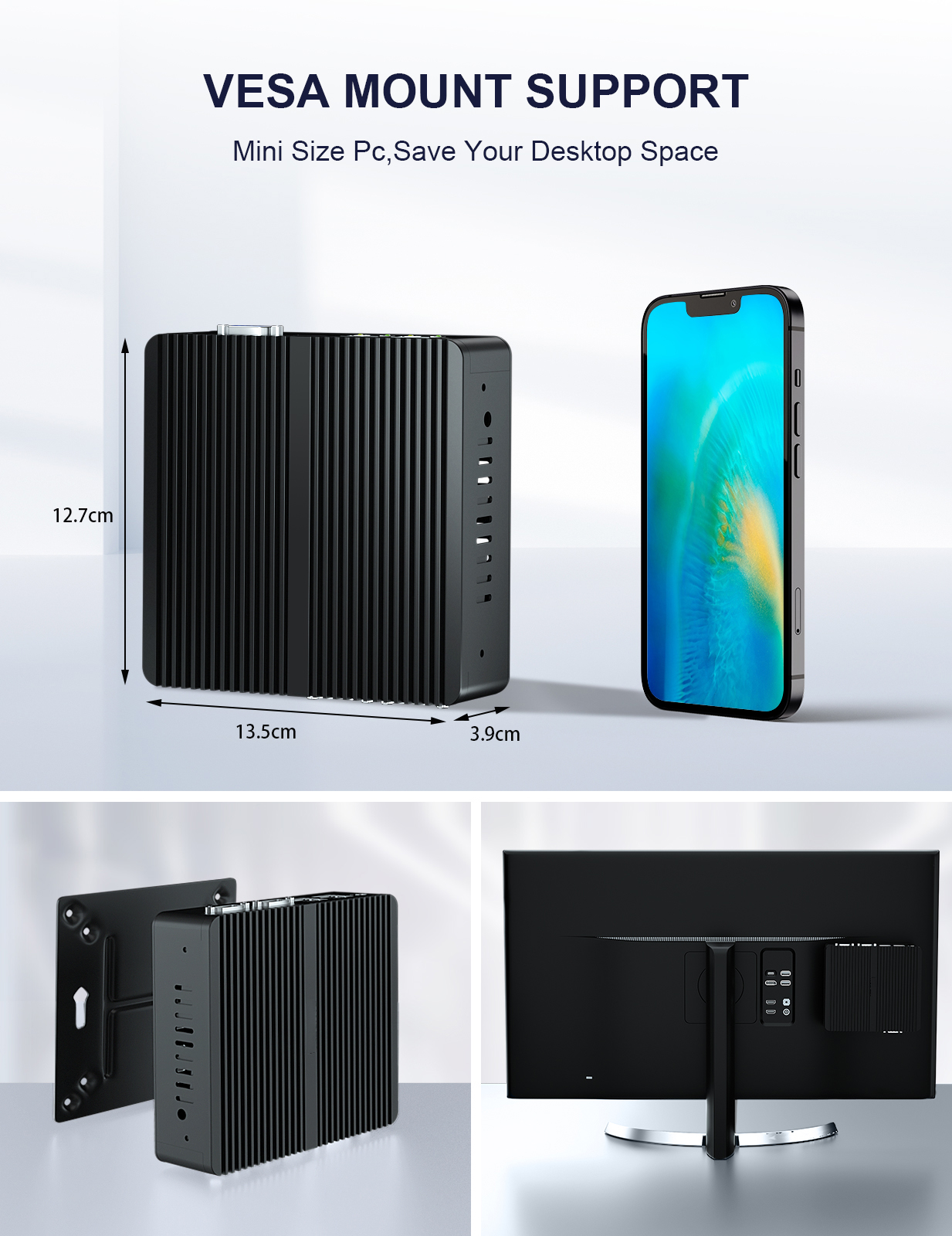

[Small size, big function] With its ultra-mini form factor, the H3 can be used in all industrial environments and also supports VESA, wall mounting, and
a seamless chassis to effectively organize tiny foreign objects that can damage the product and protect against dust and moisture.
[Dual Screen Display] Built with 1xHDMI port and 1xVGA port, seamlessly connecting two monitors. With integrated Intel UHD Graphics 600 to enjoy 4K

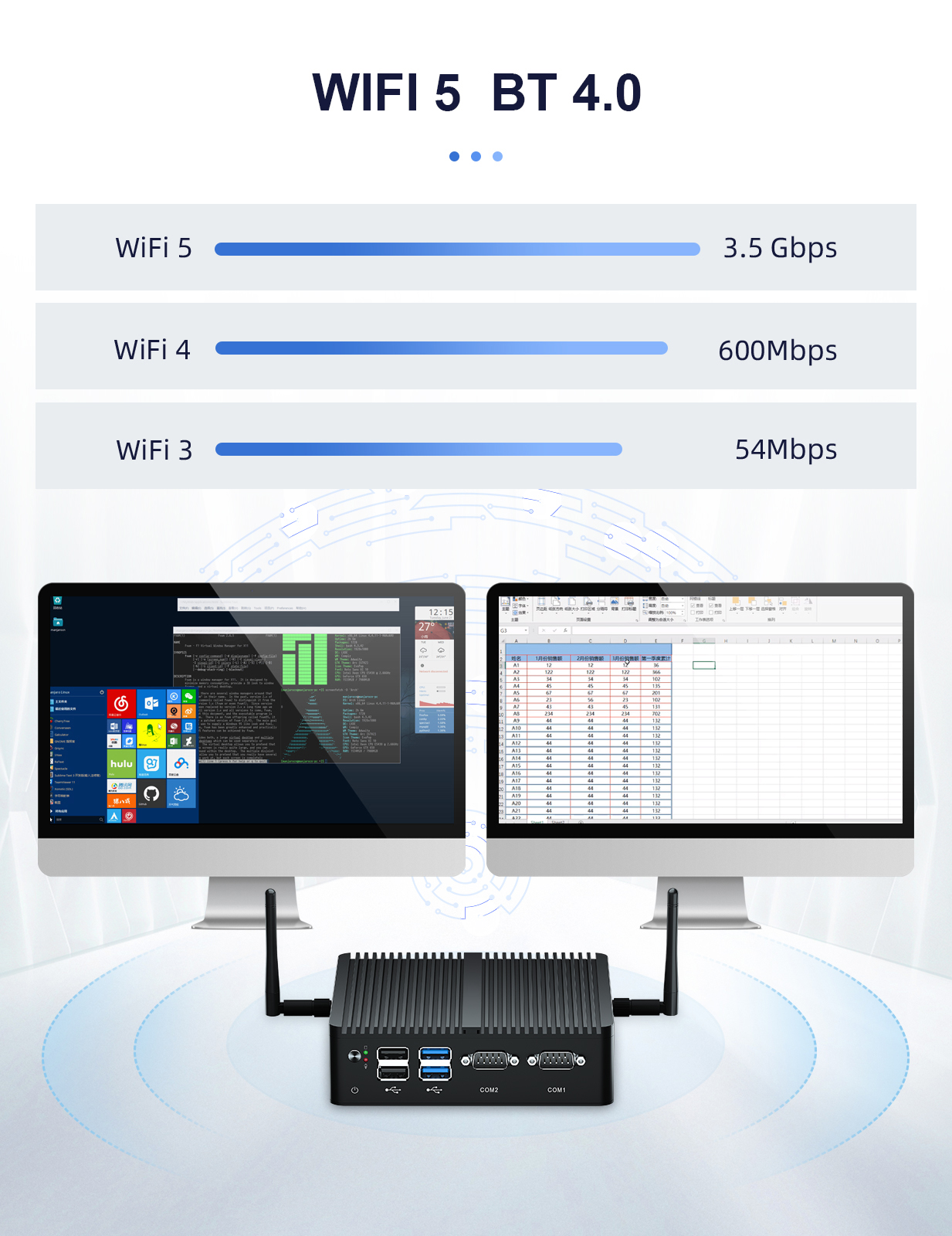

Web surfing, video playback, watching TV, home theater, enjoy the entertainment with your family. Support 2.4G/5.8G Band WiFi.
[No noise and security]This mini PC has an industrial grade fanless design that is quiet and saves energy, and The industrial-grade fully enclosed design
keeps out all dust and extends the life of the computer.



Processor
CPU
Intel Celeron J4105 (4M Cache, 4 Cores 4 Threads, Base Frequency 1.50 GHz Turbo Frequency 2.50 GHz)
Intel Celeron J4125 (4M Cache, 4 Cores 4 Threads, Base Frequency 2.00 GHz Turbo Frequency 2.70 GHz)
TDP
10W
CPU Lithography
14 nm
Memory Specifications
Max Memory Size
32GB
Memory Types
1*DDR4 SO-DIMM 260 pin
Memory Speed
2400 MHz
Memory Channels
Single Channels
ECC Memory
Don’t support
Storage Specification
m.2 SSD
1*M.2 2280 M KEY PCIE3.0
SATA
1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA
1*mSATA slot
Graphics
Processor Graphics
Intel® UHD Graphics 600
HDMI
1*HDMI 4096*2160@30Hz(4K)
VGA
1*VGA 1920*1080@60Hz(1080P)
Power Specification
Adapter Output
DC 12V/5A
Adapter Input
AC 110-240V, 50/60HZ
Consumption
50W
Auto Power On
Support Auto Power On Function

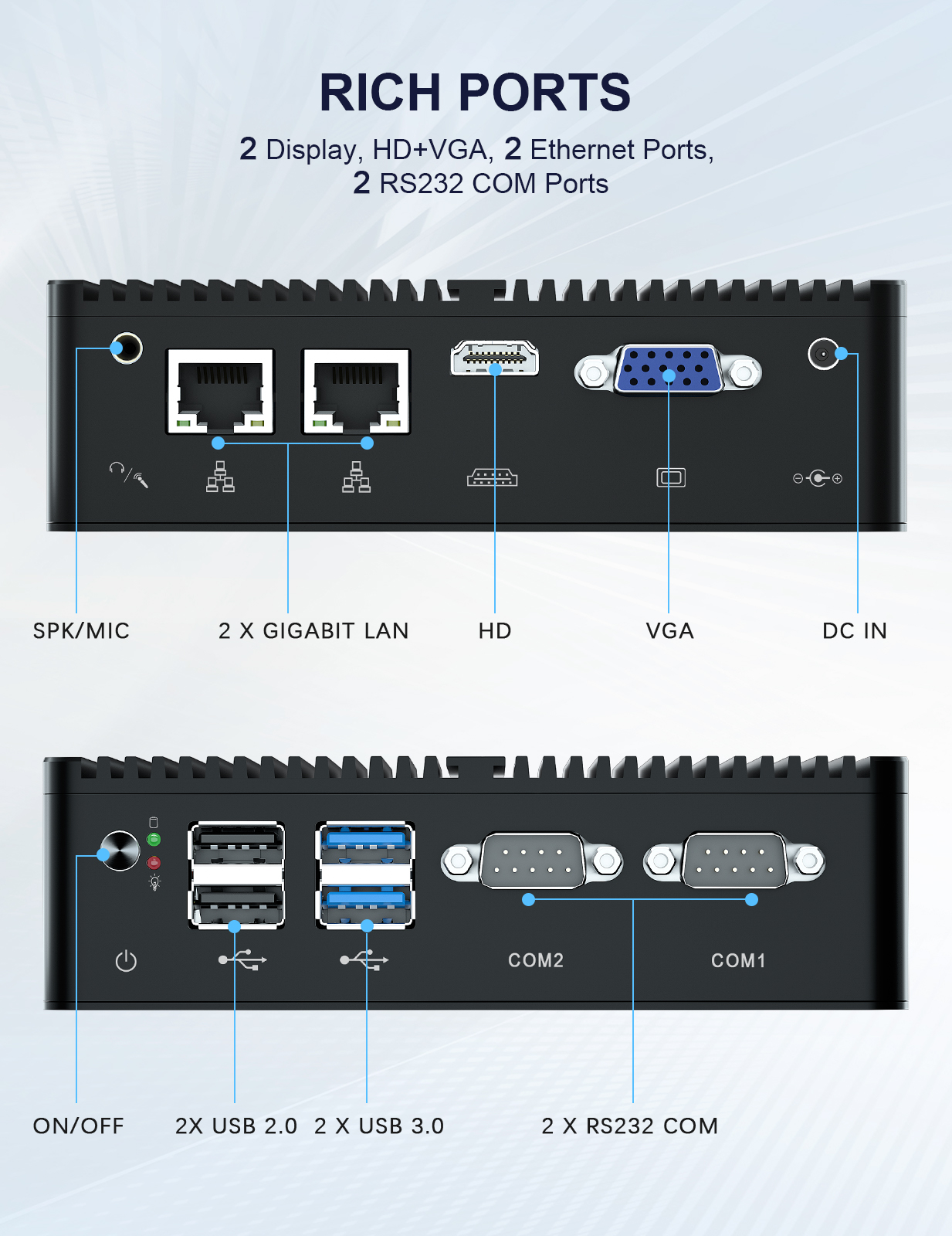

In & Out interfaces
USB Port
2*USB 3.0 port,2*USB 2.0 port
Audio
1*3.5mm MIC in & SPK out
Video
HDMI 4096*2160@30Hz + VGA 1920*1080@60Hz 2 Display Output
Audio Cards
USB Audio Device
Lan Port
2* RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
Com Port
2*RS232 Com port
Wi-Fi
Inside Wifi & Bluetooth Combo
Others
System

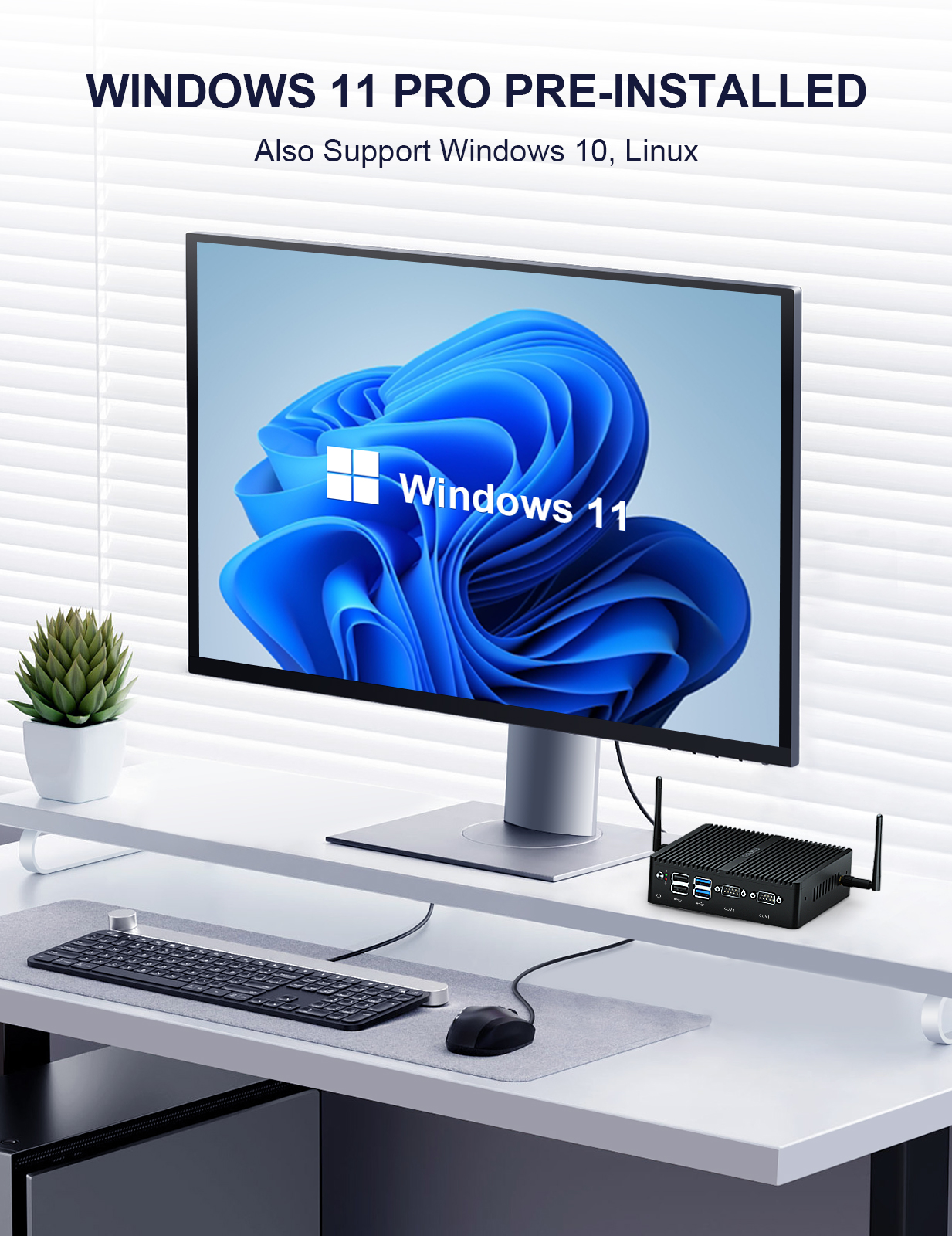

Support Windows 10/11, Linux
BIOS
Support TPM2.0,AUTO POWER ON,Wake On LAN,Watchdog,PXE,Resume By Alarm
MPCIE
1*MPCIE,Support Wifi module
Work Environment
-10℃--60℃(14F~140F) , 30%--90% Humidity
Case Material
Full Brushed Aluminum Alloy
Dimension
PC size 135*127*39mm
Package size 305*205*75mm
Weight
Net 0.6kg; Gross 1.2kg
