SmallPC Desktop Gaming Mini PC M7 Core i9 i7 i5
SmallPC Technology Co Limited is a reliable and trustworthy manufacturer and exporter of Mini PC. We export our products to all over the world and

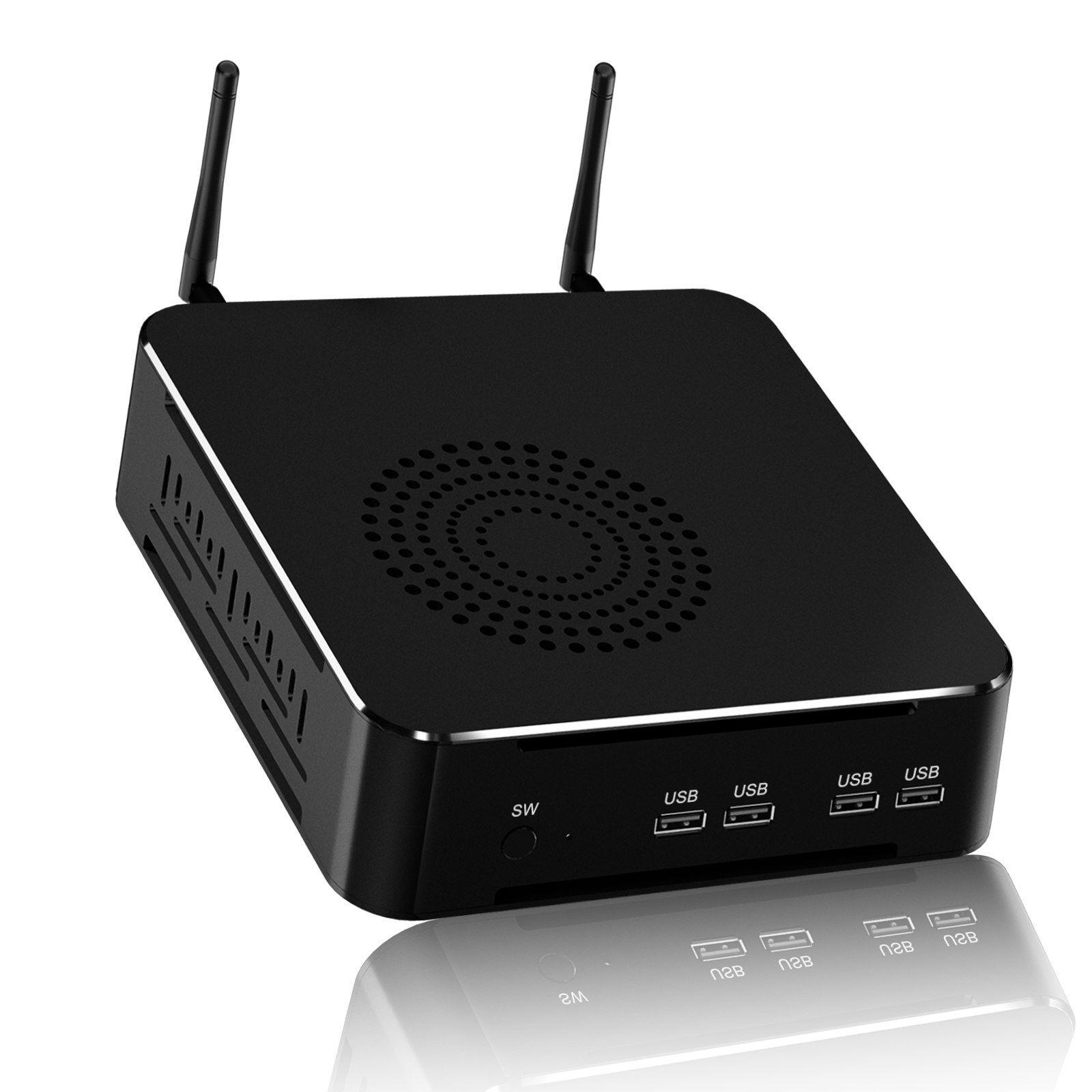

have made a small name for ourselves in the whole Mini PC market. This is our new home mini computer M7.
M7 Mini PC high light：
High Performance: Intel Core i9/i7/i5/Pentium CPU with Intel UHD graphics Supports up to 64GB DDR4 memory (2 x 32GB) and 1 x M.2 SSD driveWindows 11 Pro 64-Bit pre-installed.Small size, big function: With its ultra-mini form factor, the M7 can be used in all industrial environments and also supports VESA, wall mounting,and a seamless chassis to effectively organize tiny foreign objects that can damage the product and protect against dust and moisture.Small size, energy saving: compact size, does not take up space, requires less energy than other alternatives, uses intelligent fan airflow design,silent operation.Rich interfaces: 4*USB 3.2 ports, 4*USB 2.0 ports, 1*HDMI (4K) display output, 1*RJ45 Lan port.Certifications and Support: FCC, CE, ROSH, certifications. 24/7 Support. Functions: RTC wake up / Wake on Lan / Auto Power on (BIOS setting) /Network boot.
Processor
CPU
Intel® Core™ i5-9300H Processor (8M Cache, 4 Cores 8 Threads, Base Frequency 2.40 GHz Turbo Frequency 4.10 GHz)Intel® Core™ i7-9750H Processor (12M Cache, 6 Cores 12 Threads, Base Frequency 2.60 GHz Turbo Frequency 4.50 GHz)Intel® Core™ i5-10200H Processor (8M Cache, 4 Cores 8 Threads, Base Frequency 2.40 GHz Turbo Frequency 4.10 GHz)Intel® Core™ i7-10750H Processor (12M Cache, 6 Cores 12 Threads, Base Frequency 2.60 GHz Turbo Frequency 5.00 GHz)Intel® Core™ i7-11700 Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.50 GHz Turbo Frequency 4.90 GHz)Intel® Core™ i9-11900 Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.50 GHz Turbo Frequency 5.20 GHz)
TDP
58~65W
CPU Lithography
14 nm

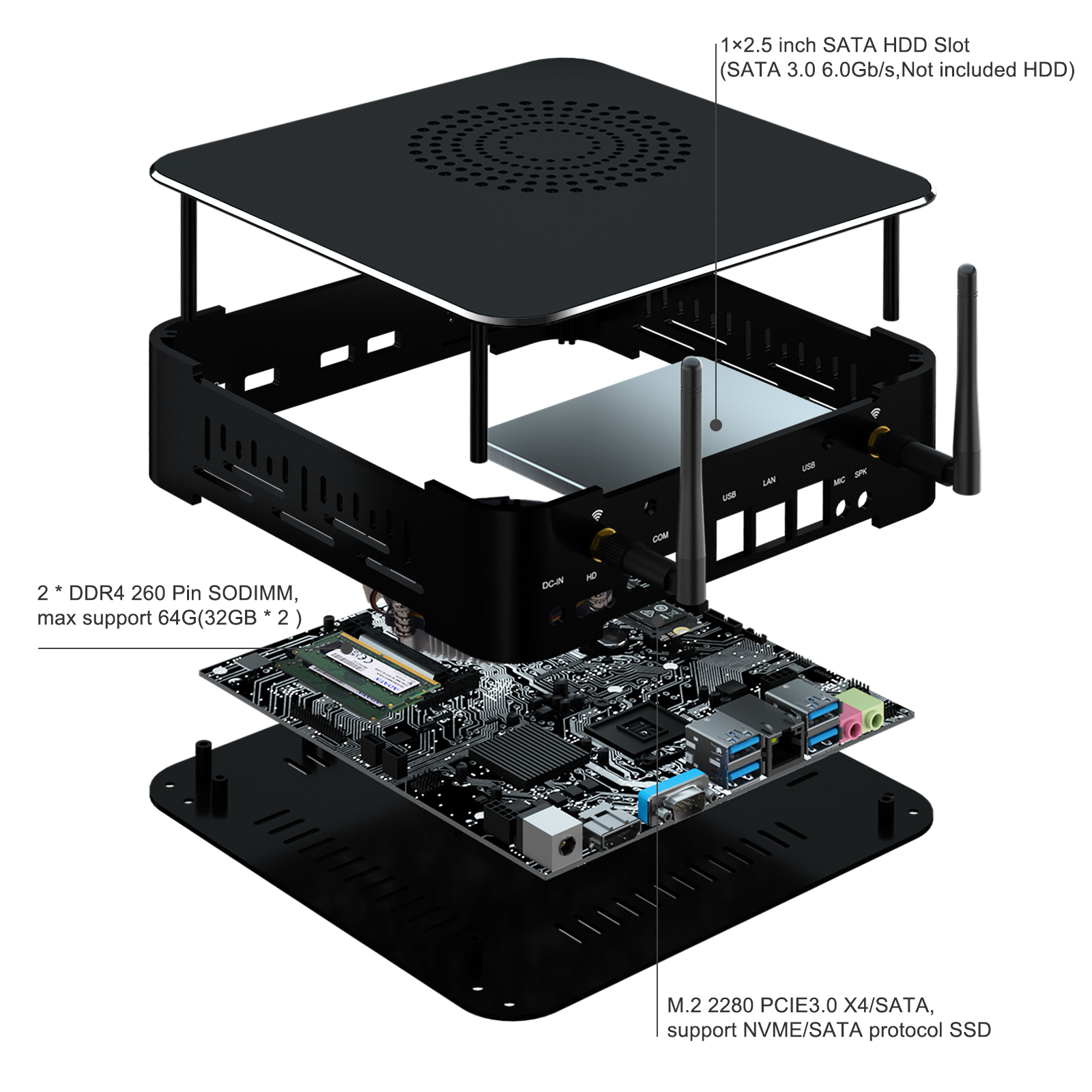

Memory Specifications
Max Memory Size
64GB
Memory Types
2*DDR4 SO-DIMM 260 pin
Memory Speed
3200 MHz
Memory Channels
Dual Channels
ECC Memory
Don’t support
Storage Specification
m.2 SSD
1*M.2 2280 M KEY PCIE3.0
SATA
1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA
NO mSATA slot
Graphics
Processor Graphics
Intel® UHD Graphics 610 for G6400 CPU,Intel® UHD Graphics 730 for i5-11400,Intel® UHD Graphics 750 for i7-11700/i9-11900 CPU
HDMI
1*HDMI 4096*2160@30Hz(4K)
VGA
1*VGA 1920*1080@60Hz(1080P),No Com Port,VGA Replace Com port
Power Specification
Adapter Output
DC 19V/7.9A
Adapter Input
AC 100-240V, 50/60HZ
Consumption
140W
Auto Power On
Support Auto Power On Function

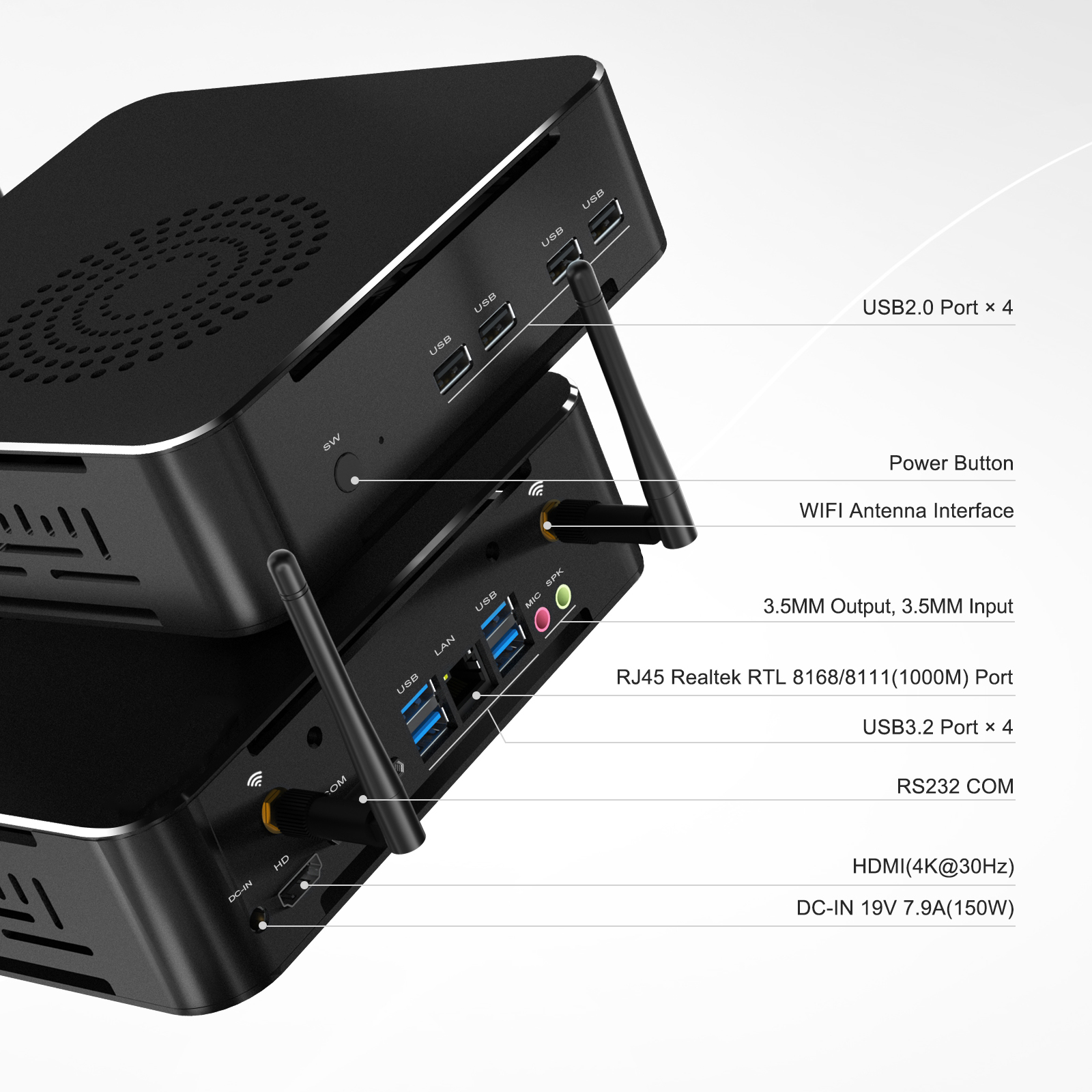

In & Out interfaces
USB Port
4*USB 3.2 port,4*USB 2.0 port
Audio
1*3.5mm MIC in & SPK out
Video
HDMI 4096 x 2160@30Hz or HDMI 4096 x 2160@30Hz + VGA 1920*1080@60Hz 2 Display Output
Audio Cards
Realtek ALC 662
M.2
1*M.2 E KEY 2230
Lan Port
1* RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
Com Port
1*RS232 Com Port/No Com Port,VGA Replace COM port
Wi-Fi
Inside Wifi & Bluetooth Combo
Others
System
Support Windows 10/11, Linux
BIOS
Support TPM 2.0,AUTO POWER ON,Wake On LAN,PXE
Work Environment
-10℃--60℃(14F~140F) , 30%--90% Humidity
Case Material
Full Brushed Aluminum Alloy
Dimension
PC size 196*196*60mm
Package size 320*260*80mm
Weight
Net 1.5kg; Gross 2.2 kg
