SmallPC Industrial Embedded Fanless Mini PC

H4
CPU
Memory
Storage
Quantity
US $427.42 - US $689.15 / unit
Contact Now
add to cart
                                                                                   Detail
                          SmallPC Industrial Fanless mini PC is designed for Industrial Automation control, servers and training application equipment.
                          mini PC, small in size, small in footprint, does not take up much space and is more practical, more reliable and has lower power                                                                   requirements to help users get a better computing experience.

                       H4 Mini PC high light:
                       1. Intel 8th Gen Core i5-8250U and i7-8550U Quad Core Processor, max Turbo 3.4GHz up to 4.0GHz.

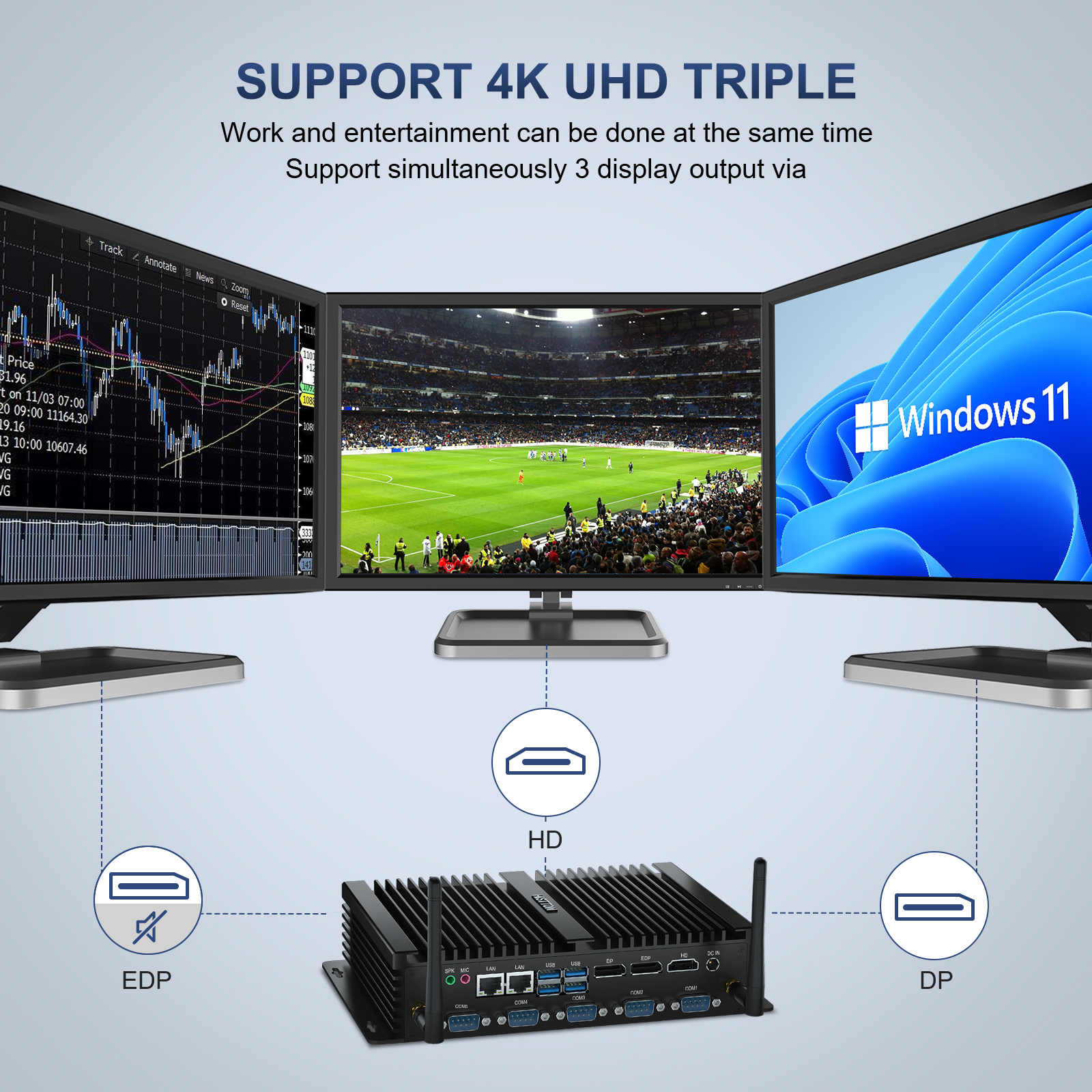

                       2. HDMI 2.0 port 4096×2160@60 (4K), HDMI 2.0, DP and EDP support 4096×2160 @60 (4K),3 display support.
                           Super Gaming Experience: Forza Horizon 5，Escape from Tarkov，CS.GO，God of War
                       3. Dual DDR4 260-pin SO-Dimm memory is faster than dual DDR3 memory in a PC.

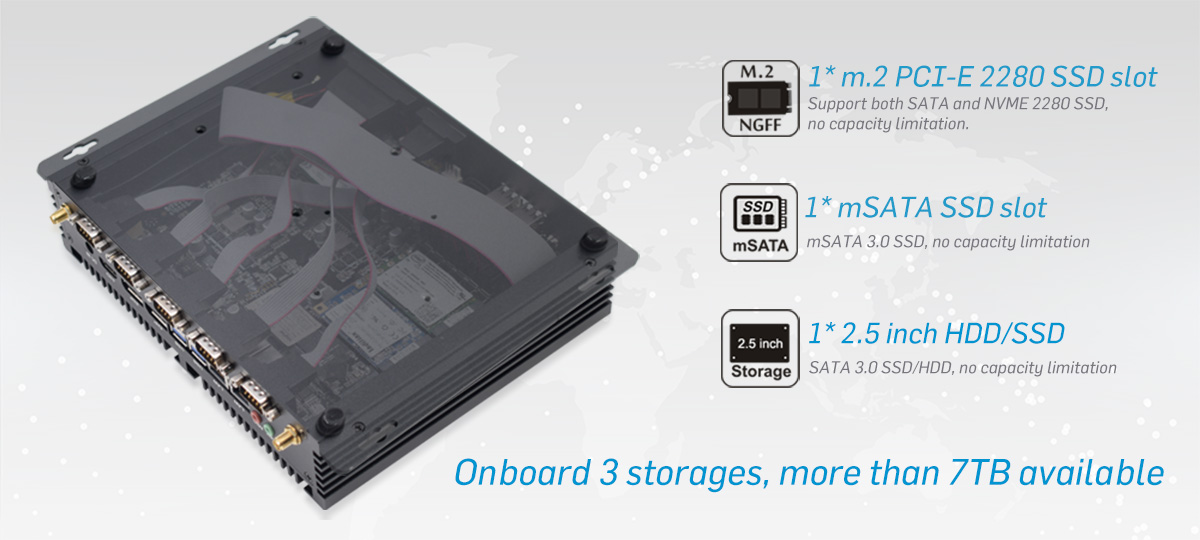

                       4. Onboard M.2 SATA and mSATA storage allows for a variety of storage expansion whatever floats your boat
                       5. All aluminum alloy process, high speed cooling, faster cooling, always in top condition

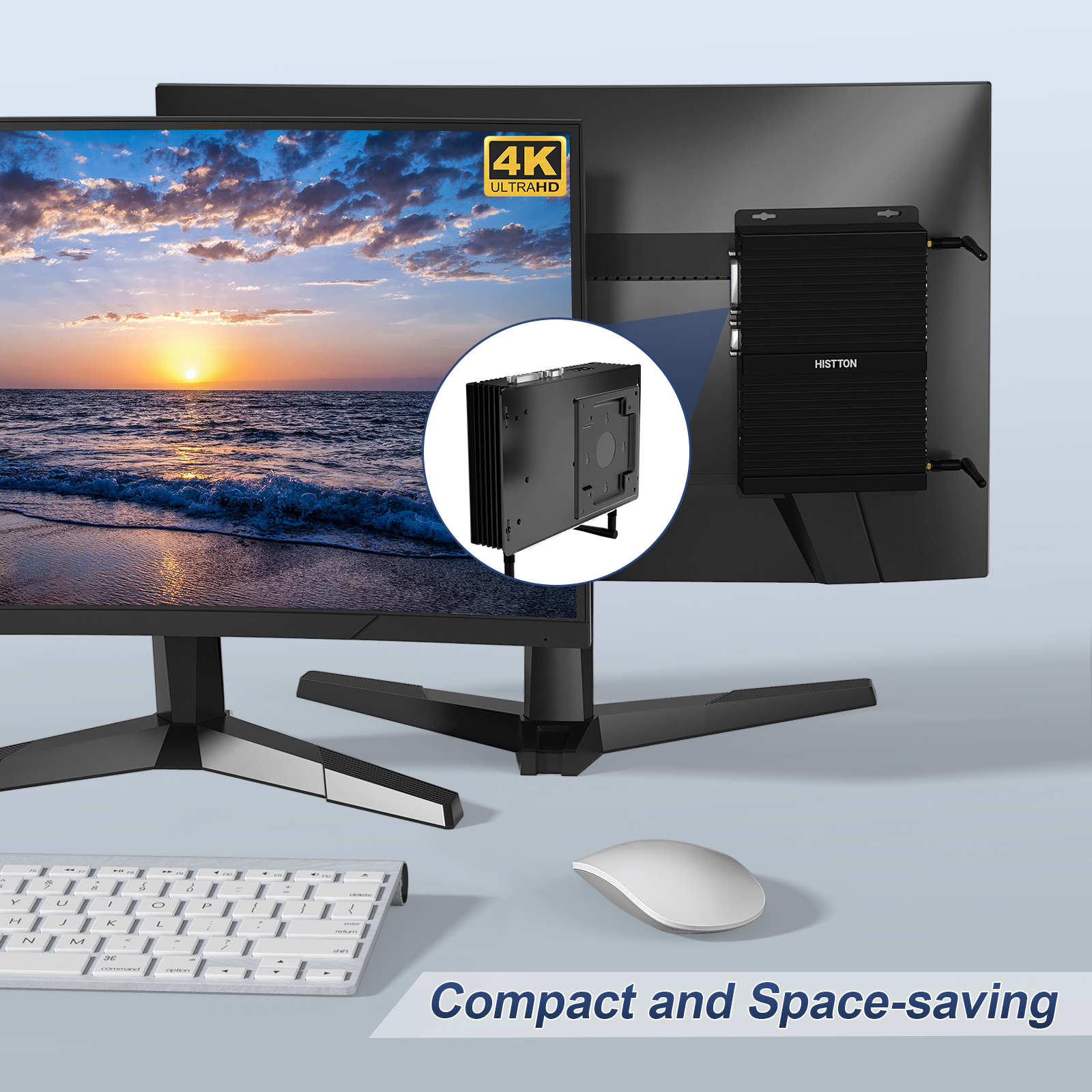

                       6. The included VESA can be screwed to the back of the monitor and also supports fixing to the inside of various devices.
                       Available Processors:
                       1. Intel® Core i5-8250U Processor (6M Cache, up to 3.4 GHz);
                       2. Intel® Core i7-8550U Processor (8M Cache, up to 4.0 GHz);



Fanless Mini PCFanless Mini PC
Fanless Mini PC

Processor

CPU

Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz)

Intel Core i7-8550U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.00 GHz)

TDP

15W

CPU Lithography

14 nm

Memory Specifications

Max Memory Size

64GB

Memory Types

2*DDR4 SO-DIMM 260 pin

Memory Channels

Dual Channels

ECC Memory

Don’t support

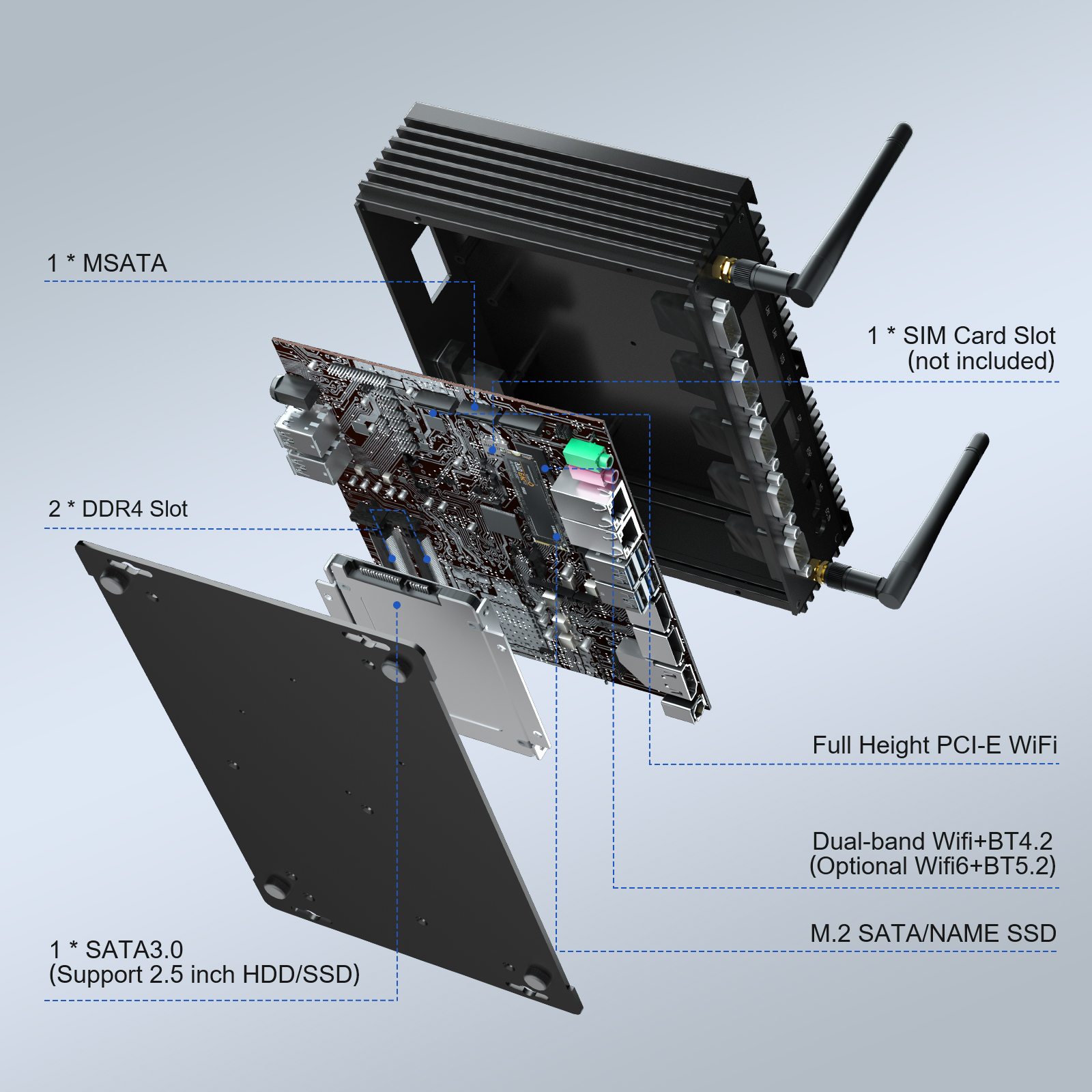

Storage Specification

m.2 SSD

1*M.2 2280 M KEY PCIE3.0

SATA

1*SATA3.0 Slot for 2.5 inch HDD/SSD

mSATA

1*mSATA slot

Graphics

Processor Graphics

    Intel UHD Graphics 620

HDMI

1*HDMI 4096*2160@60Hz(4K)

EDP

1*EDP 4096*2160@60Hz(4K)

DP

1*DP 4096*2160@60Hz(4K)

Power Specification

Adapter Output

DC 12V/6A

Adapter Input

AC 110-240V, 50/60HZ

Consumption

52W

Auto Power On

Support Auto Power On Function

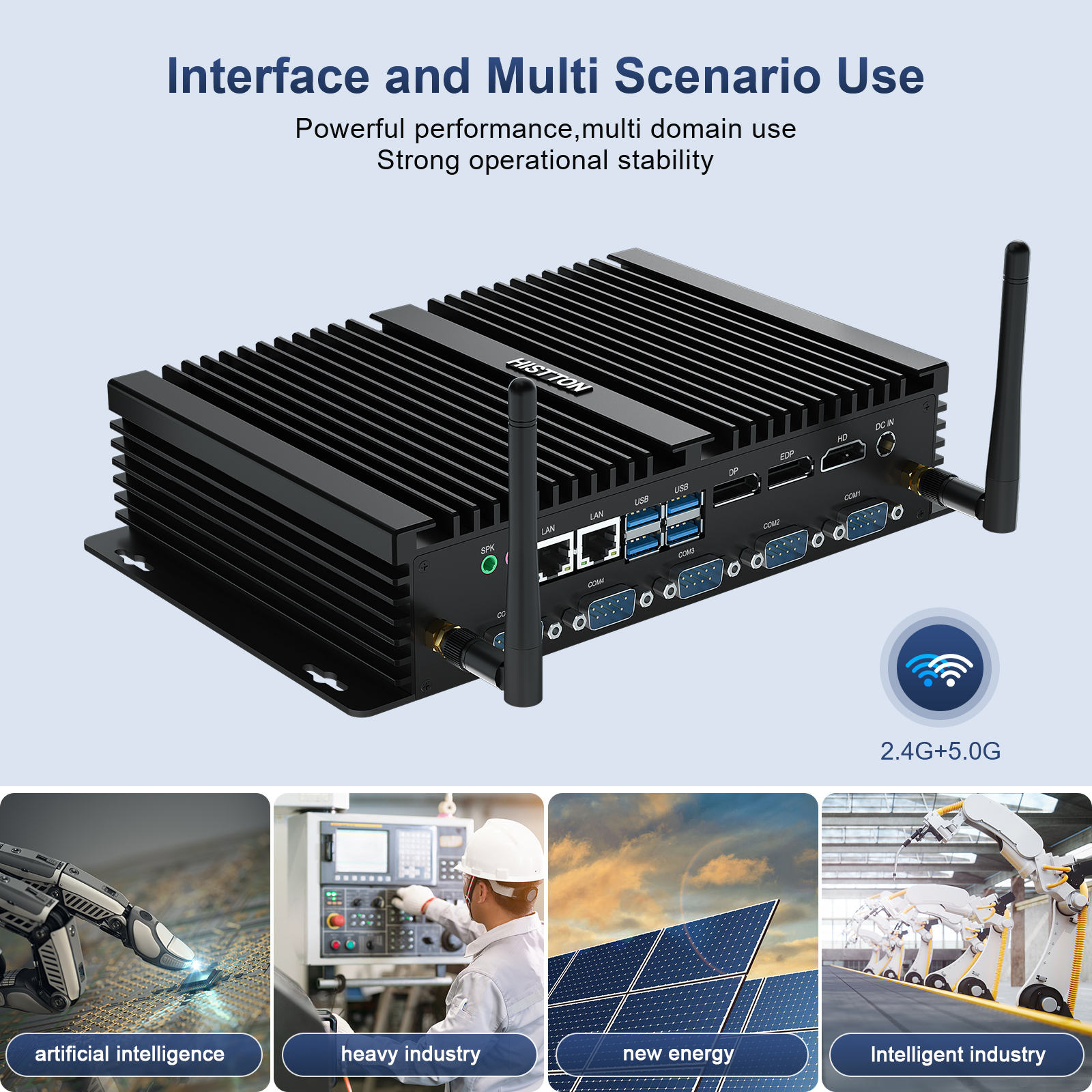

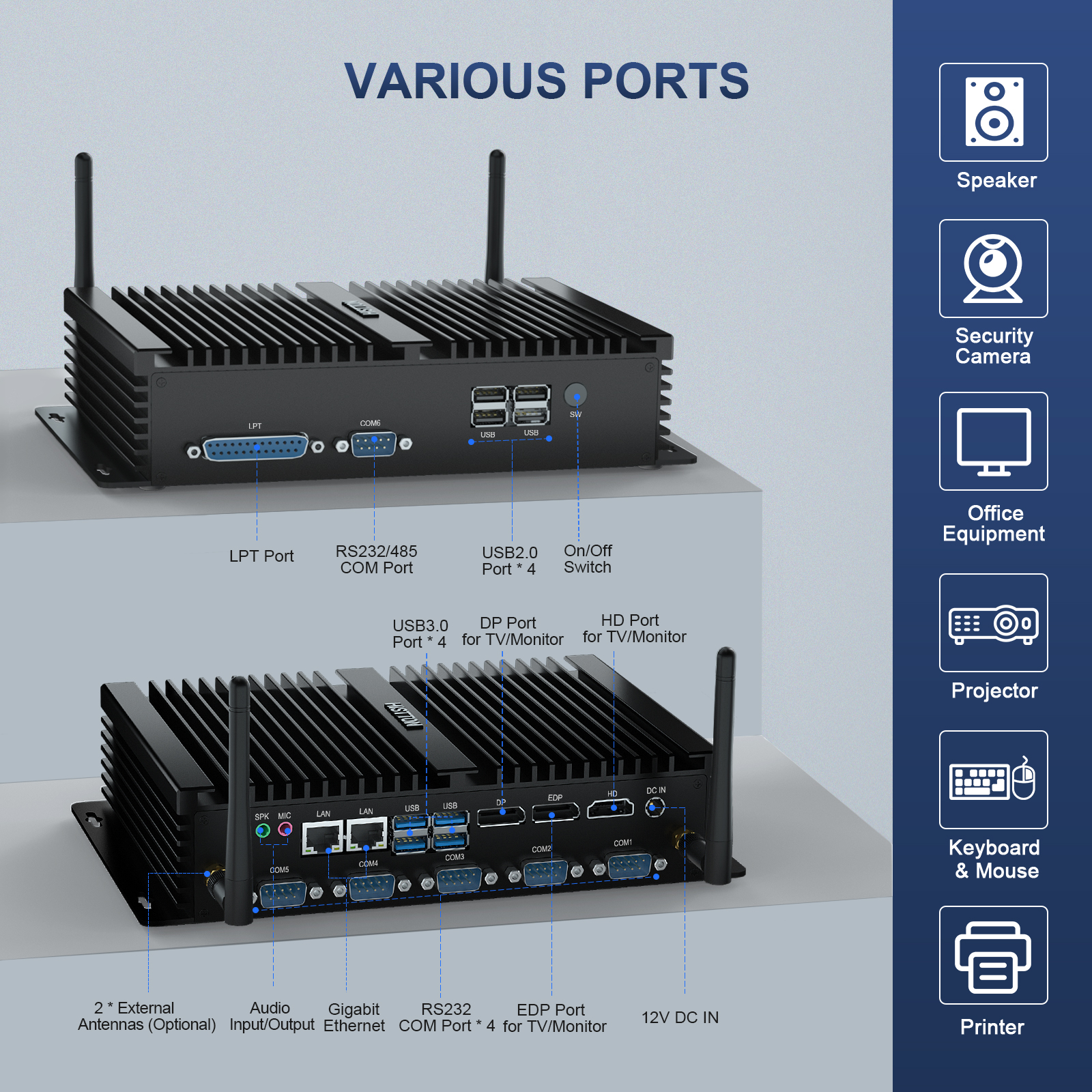

In & Out interfaces

USB Port

4*USB 3.0 port,4*USB 2.0 port

Audio

1*3.5mm MIC in & SPK out

Video

HDMI 4096*2160@60Hz + EDP 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output

Audio Cards

Realtek ALC 662/897

M.2

1*M.2 E KEY 2230

LPT

1*LPT(line print terminal)

Lan Port

2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211

Com Port

6*RS232 Com port/4*RS232 Com port, 2*RS485 Com port

Wi-Fi

Inside Wifi & Bluetooth Combo

Others

System

Support Windows 10/11, Linux

BIOS

Support TPM2.0,RAID,AUTO POWER ON,Wake On LAN,Watchdog,PXE/IPXE

SIM

1*SIM slot

MPCIE

1*MPCIE,Support 4G/Wifi module

Work Environment

-10℃--60℃(14F~140F) , 30%--90% Humidity

Case Material

Full Brushed Aluminum Alloy

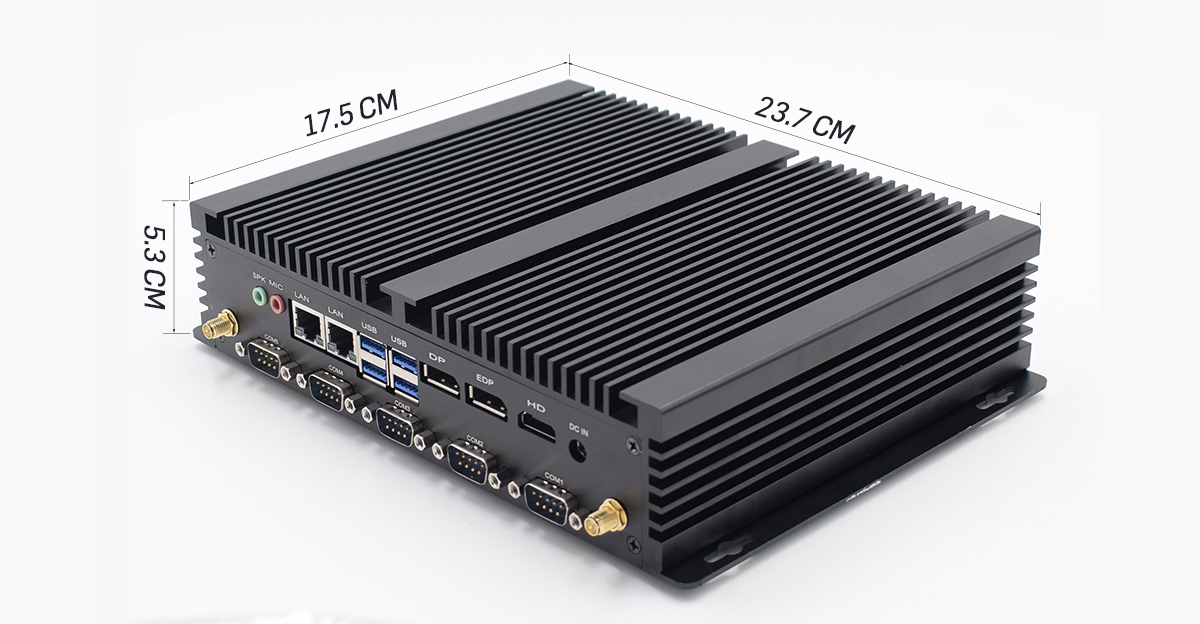

Dimension

PC size 238*182*52mm

Package size 320*260*80mm

Weight

Net 1.5kg; Gross 2.2 kg
