Business Desktop PC Office High end New Mini PC
- SmallPC Technology Co Limited is a reliable and trustworthy manufacturer and exporter of Mini PC. We export our products to all over the
world and have made a small name for ourselves in the whole Mini PC market. This is our new home mini computer M1.
Advantages of M1.Equipped with the latest 11th generation Intel Core CPUs ---The M1 has a significant improvement in processing power.
More Ports --- 3 x USB 3.0 ports, 4 x USB 2.0 ports, 1 x Type-C USB port, 1 x HDMI, 1 x DP, 1 x RJ45 Lan port.
Multi-monitor Disparate Display --- Support three monitors display, three screens with the same display / three screens with different display.
Certifications and Support ---FCC, CE, ROSH, certifications. 24/7 Support. Functions: RTC wake up / Wake on Lan / Auto Power on (BIOS setting) / Network boot.
Processor
CPU Intel® Core™ i9-9880H Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.30 GHz Turbo Frequency 4.80 GHz)
Intel® Core™ i5-10200H Processor (8M Cache, 4 Cores 8 Threads, Base Frequency 2.40 GHz Turbo Frequency 4.10 GHz)
Intel® Core™ i7-10870H Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.20 GHz Turbo Frequency 5.00 GHz)
Intel® Core™ i5-1135G7 Processor (8M Cache, 4 Cores 8 Threads, Base Frequency 2.40 GHz Turbo Frequency 4.20 GHz)
Intel® Core™ i9-11900H Processor (24M Cache, 8 Cores 16 Threads, Base Frequency 2.10 GHz Turbo Frequency 4.90 GHz)
TDP
45W
CPU Lithography
14 nm

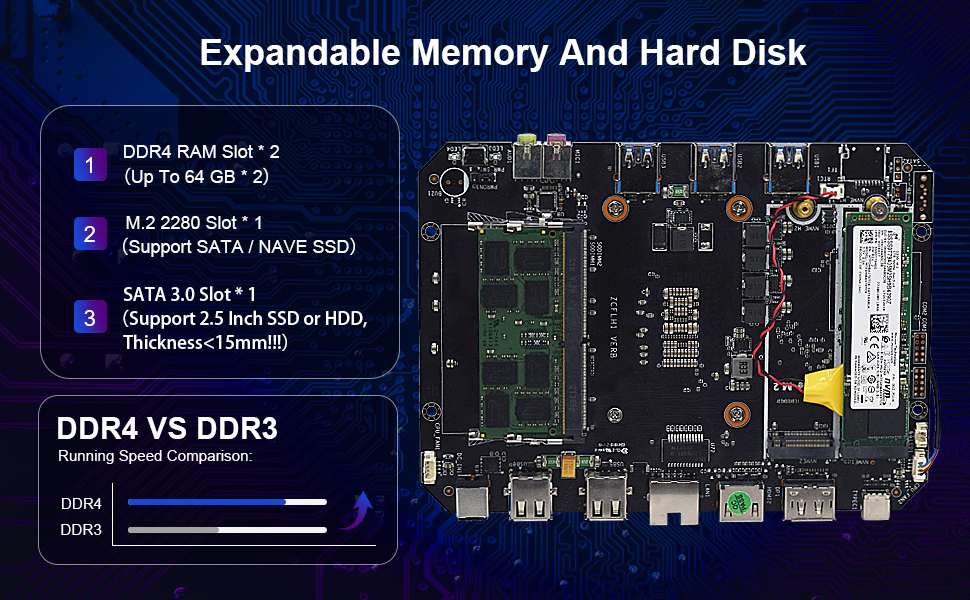

Memory Specifications
Max Memory Size
64GB
Memory Types
2*DDR4 SO-DIMM 260 pin
Memory Speed
2666 MHz,2933 MHz for 10th CPU
Memory Channels
Dual Channels
ECC Memory
Don’t support
Storage Specification
m.2 SSD
2*M.2 2280 M KEY PCIE3.0
SATA
NO SATA slot
mSATA
NO mSATA slot
Graphics
Processor Graphics
Intel UHD Graphics 630,, Intel UHD Graphics for 10th CPU
HDMI
1*HDMI 4096*2304@30Hz(4K)
DP
1*DP 4096*2304@60Hz(4K)
Type-C
1*Type-C 4096*2304@60Hz(4K)
Power Specification
Adapter Output
DC 19V/6.32A
Adapter Input
AC 100-240V, 50/60HZ
Consumption
85W
Auto Power On
Support Auto Power On Function

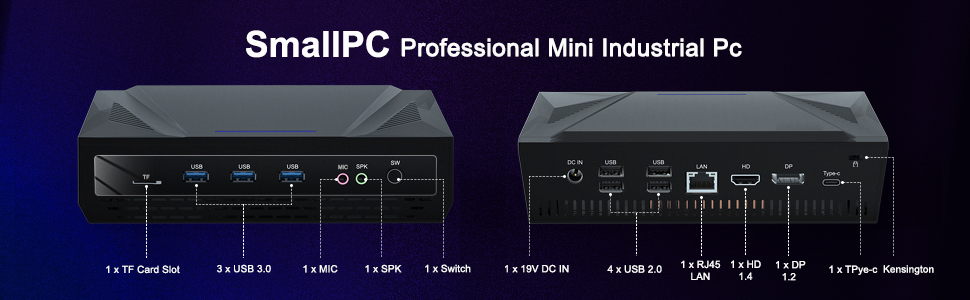

In & Out interfaces
USB Port
3*USB 3.0 port,4*USB 2.0 port,1*Type-C USB port
Audio
2*3.5mm MIC in & SPK out
Video
HDMI 4096*2304@30Hz + DP 4096*2304@60Hz +Type-C 4096*2304@60Hz 3 Display Output
Audio Cards
USB Audio Device
M.2
1*M.2 E KEY 2230
TF
1*TF card slot
Lan Port
1* RJ45 Lan intel Ethernet Controller I219-V (1G)
Wi-Fi
Inside Wifi & Bluetooth Combo
Others
System
Support Windows 10/11, Linux
BIOS
Support TPM 2.0,Wake On LAN,PXE,Connect the power to automatically start
Work Environment
-10℃--50℃(14F~122F) , 30%--90% Humidity
Case Material
ABS + Aluminum Alloy
Dimension
PC size 192*130*50mm
Package size 308*206*75mm
Weight
Net 0.6kg; Gross 1.4 kg
