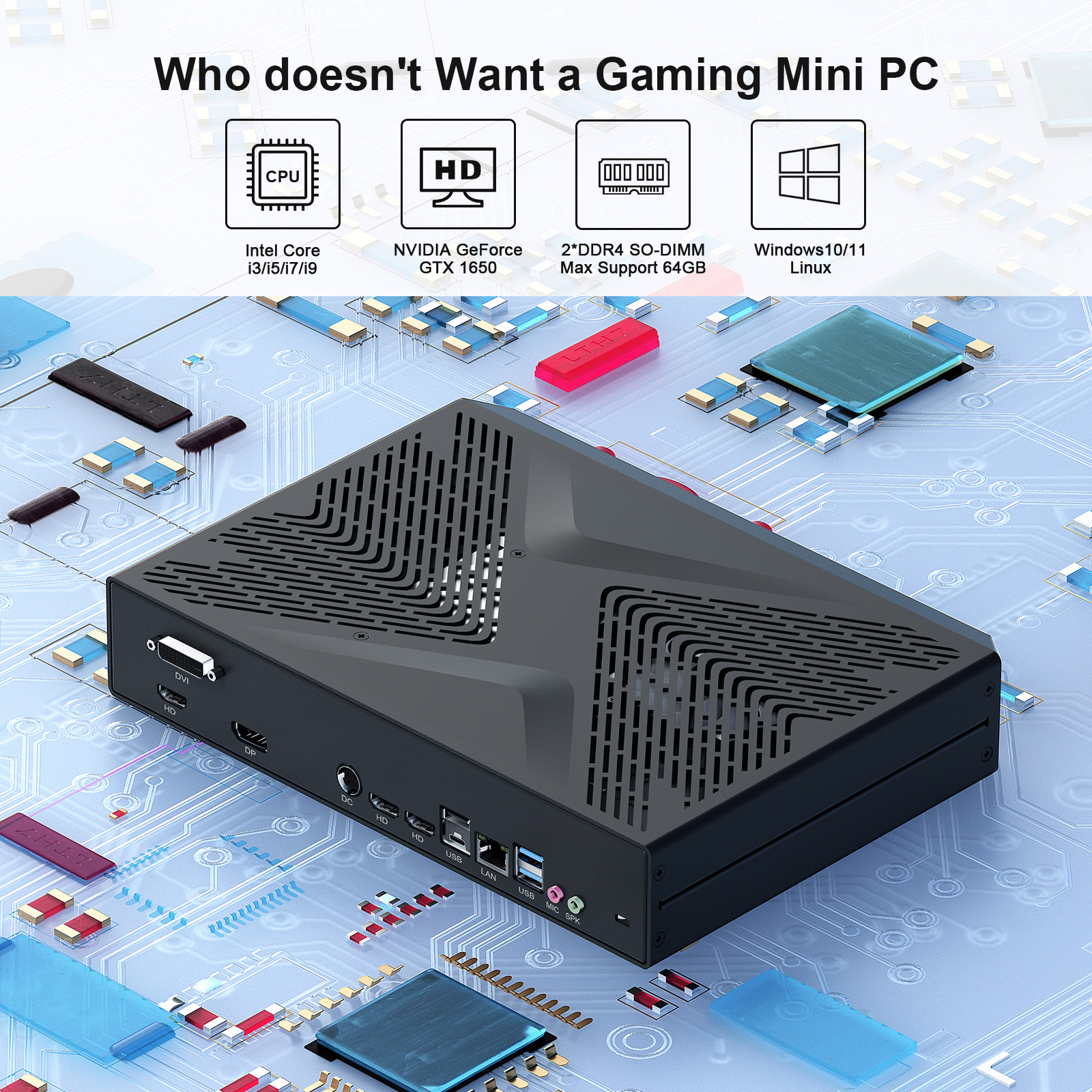

Gaming 12Gen GTX1650 I7-12700F GDDR5 Desktop Mini Gaming PC
- SmallPC gaming pc, compact design, fashionable and exquisite, no matter what use scenario, are perfectly integrated,beautiful appearance has the heart of a beast, small and strong performance.Advantages of GT：Discrete graphics card --- Equipped with NVIDIA GeForce GTX 1650 4GB GDDR5 graphics card, born to be the king of gaming.Memory & Storage --- Memory types: Dual DDR4 Max 64GB. Storage:1 x M.2 KEY M for SATA&PCIe Gen 3.0X4 (M.2 2280, NVME),1 x SATA3.0 for 2.5 inch HDD/SSD.Lightweight and mini --- The size of GT is 27*20*5cm, it is smaller than a piece of A4 paper, and it can hang behind the monitor without showing.Premium display output---GT gaming PC has five 8K UHD streams to give you a visual feast.More ports --- 4*USB3.0、4*USB2.0、3*HD(8K)、DP、DVI、RJ45、3.5MM MIC&SPK out、Dual Band WiFi&Bluetooth Combo.
Processor
CPU
Intel® Core™ i5-7500 Processor (6M Cache, 4 Cores 4 Threads, Base Frequency 3.40 GHz Turbo Frequency 3.80 GHz)Intel® Core™ i5-9400F Processor (9M Cache, 6 Cores 6 Threads, Base Frequency 2.90 GHz Turbo Frequency 4.10 GHz)Intel® Core™ i7-9700F Processor (12M Cache, 8 Cores 8 Threads, Base Frequency 3.00 GHz Turbo Frequency 4.70 GHz)Intel® Core™ i7-10870H Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.20 GHz Turbo Frequency 5.00 GHz)Intel® Core™ i7-11700F Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.50 GHz Turbo Frequency4.90 GHz)Intel® Core™ i9-11900F Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.50 GHz Turbo Frequency 5.20 GHz)Intel® Core™ i3-12100F Processor (12M Cache, 4 Cores 4 Threads, Base Frequency 3.30 GHz Turbo Frequency 4.30 GHz)Intel® Core™ i5-12400F Processor (12M Cache, 6 Cores 6 Threads, Base Frequency 2.50 GHz Turbo Frequency 4.40 GHz)Intel® Core™ i7-12700F Processor (25M Cache, 12 Cores 20 Threads, Base Frequency 2.10 GHz Turbo Frequency 4.90 GHz)TDP
45W
Chipset
Intel HM370
CPU Lithography
14 nm
Memory Specifications
Max Memory Size
64GB
Memory Types
2*DDR4 SO-DIMM 260 pin
Memory Speed
2933 MHz
Memory Channels
Dual Channels
ECC Memory
Don’t support

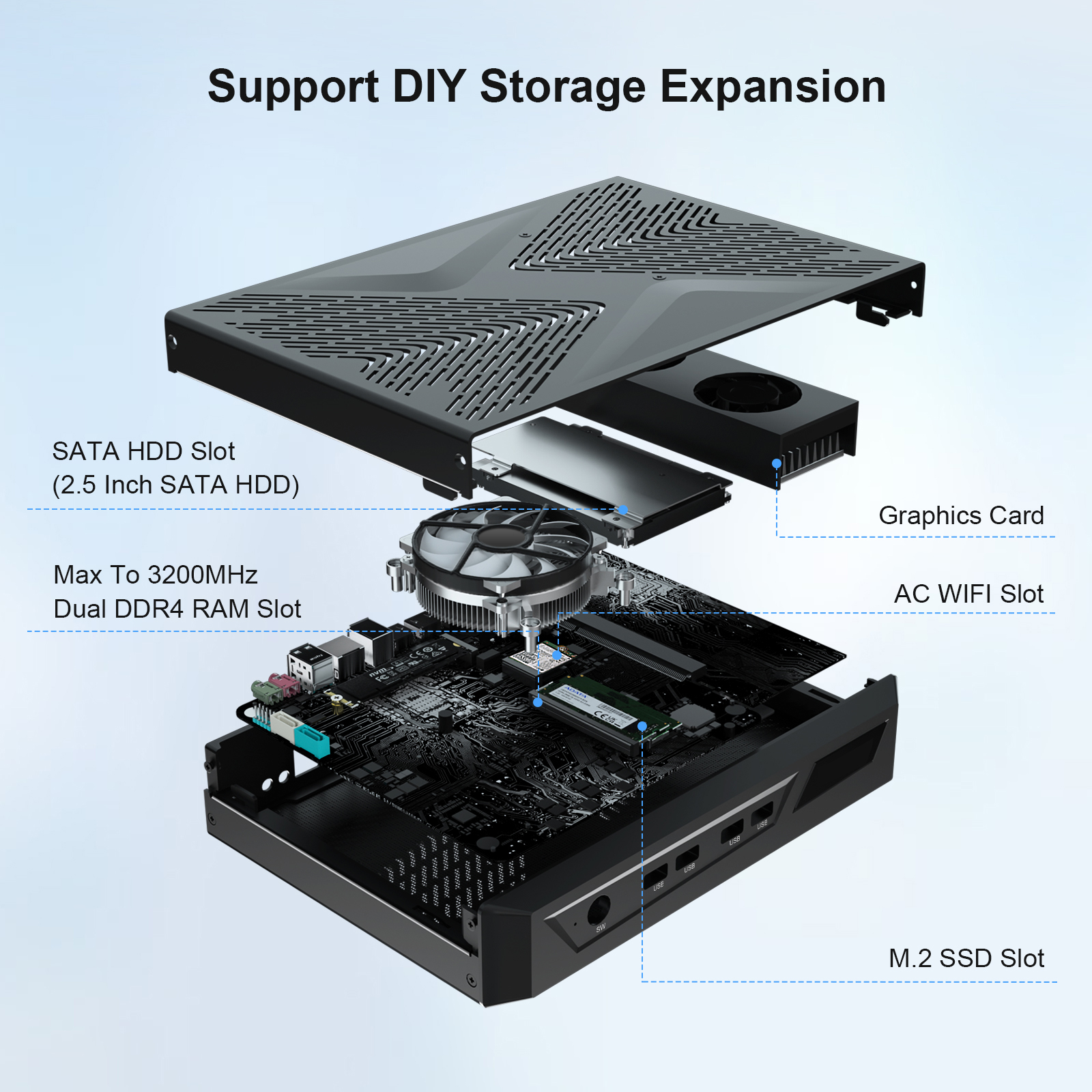

Storage Specification
m.2 SSD
1*M.2 2280 M KEY PCIE3.0
SATA
1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA
No mSATA slot
Graphics
Processor Graphics
NVIDIA GeForce GTX 1650 4GB GDDR5
HDMI
2*HDMI 4096*2160@60Hz(4K)
DP
1*DP 7680*4320@60Hz(8K)
DVI-D
1*DVI-D 2560*1440@60Hz(2K)
Power Specification
Adapter Output
DC 19V/7.9A
Adapter Input
AC 110-240V, 50/60HZ
Consumption
140W
Auto Power On
Support Auto Power On Function

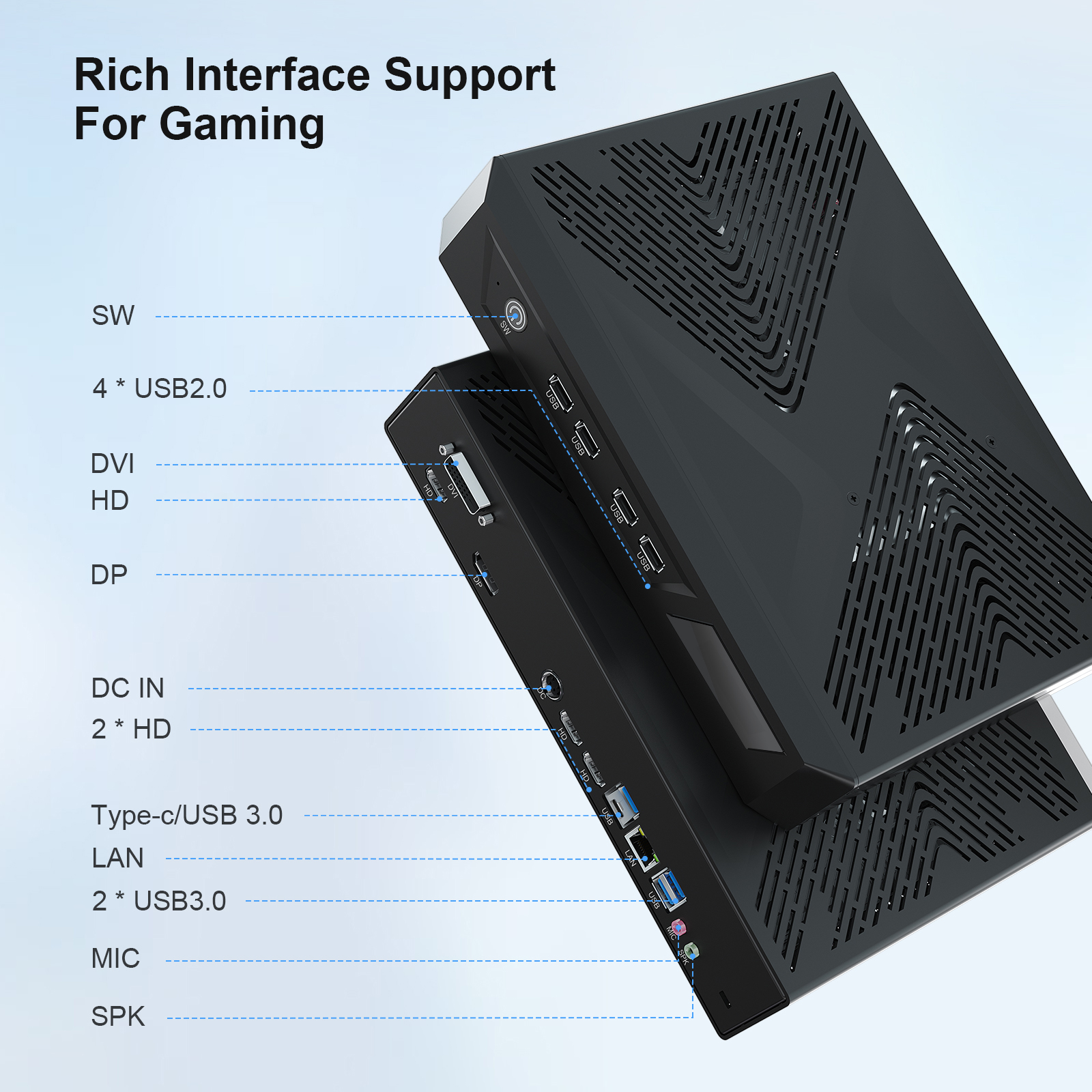

In & Out interfaces
USB Port
4*USB 3.0 port,4*USB 2.0 port
Audio
1*3.5mm MIC in & SPK out
Video
HDMI 4096*2160@60Hz + HDMI 4096*2160@60Hz + DP 7680*4320@60Hz + DVI-D 2560*1440 4 Display Output
Audio Cards
Realtek ALC 662
M.2
1*M.2 E KEY 2230
Lan Port
1* RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111
Wi-Fi
Inside Wifi & Bluetooth Combo
Others
System
Support Windows 10/11, Linux
BIOS
Support TPM2.0,AUTO POWER ON,Wake On LAN,PXE,Resume By Alarm
Work Environment
-10℃--60℃(14F~140F) , 30%--90% Humidity
Case Material
ABS + Aluminum Alloy

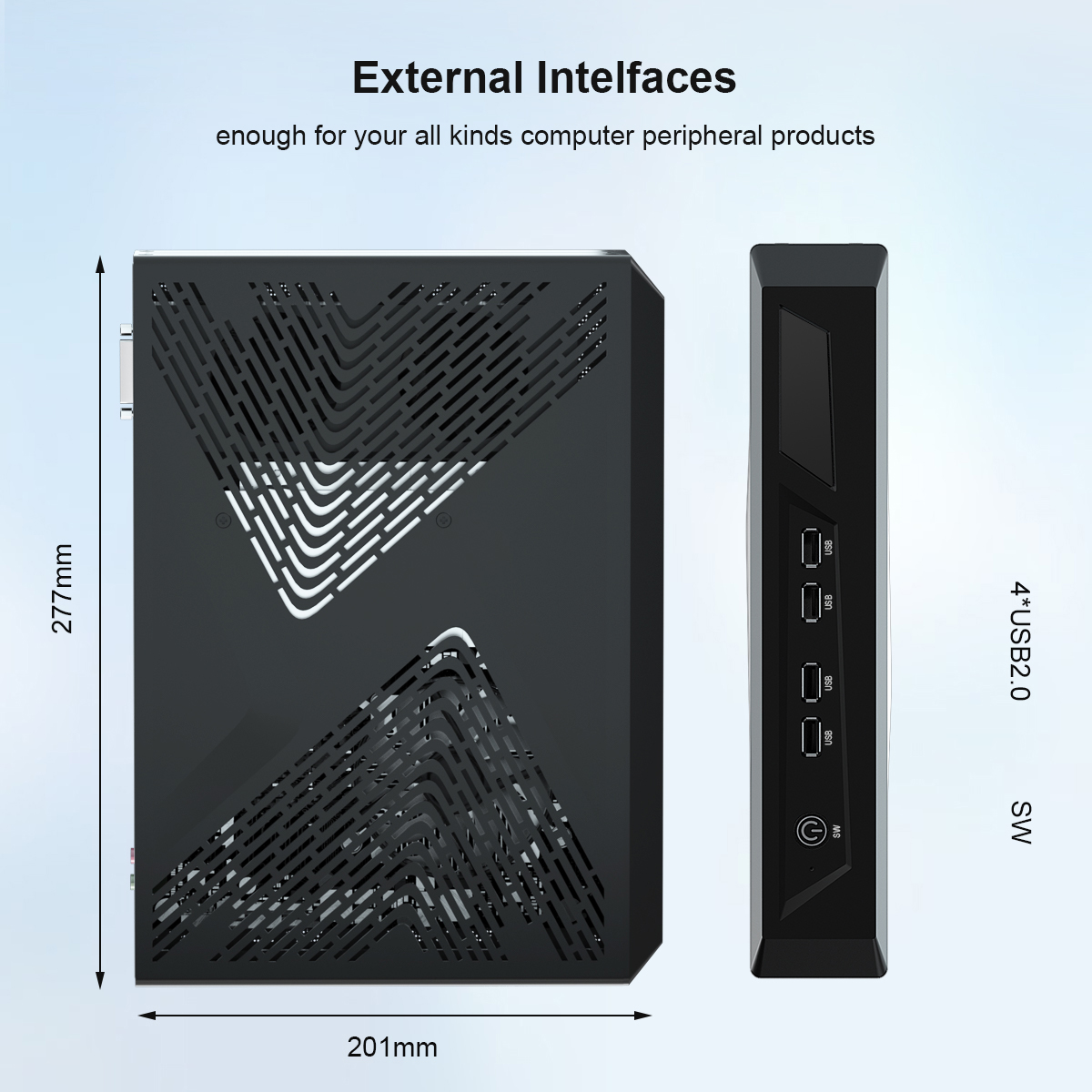

Dimension
PC size 276*200*55mm
Package size 390*290*106mm
Weight
Net 1.6kg; Gross 2.8 kg
