SmallPC Celeron J4125 4 Lan Industrial Firewall Fanless Mini PC

P09B-4L

CPU

Memory

Storage

Quantity

US $206.52 - US $295.63 / unit

Contact Now

add to cart

Detail

SmallPC introduces the new industrial firewall fanless PC P09B, a device that can be used properly in any

industrial environment, with high performance and reliability giving you the perfect experience

P09B Highlighted spot

Outstanding performance: The Celeron J4125 CPU has excellent performance to keep running smoothly even

when processing even the most complex tasks. the P09B allows you to multitask effortlessly.

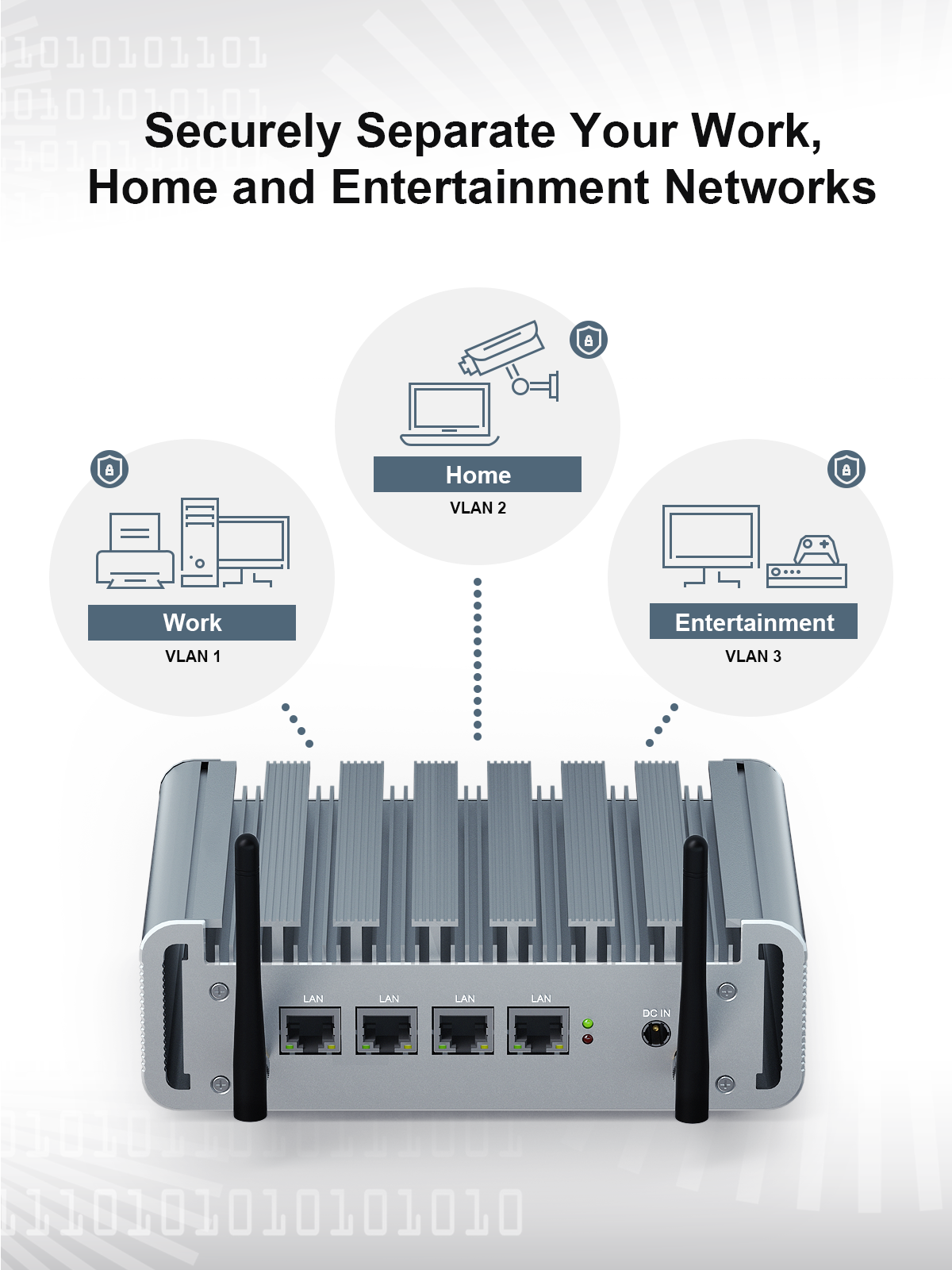

Rich working environment: With 4 Lan ports and multiple environment adaption, the P09B provides a rich

interface connection for a wide range of industrial scenarios, whether it is for industrial automation equipment,

network infrastructure building, IoT vision or data acquisition.

Easy Maintenance: The P09B was designed to ensure maximum productivity by minimising downtime when a

fault occurs, so the housing is easily removable to reduce maintenance time and save maintenance costs.

Processor
CPU	Intel Celeron J4125 (4M Cache, 4 Cores 4 Threads, Base Frequency 2.00 GHz Turbo Frequency 2.70 GHz)
TDP	10W
CPU Lithography	14 nm
Memory Specifications
Max Memory Size	24GB(16G+8G)
Memory Types	2*DDR4 SO-DIMM 260 pin
Memory Speed	2400 MHz
Memory Channels	Dual Channels
ECC Memory	Don’t support
Storage Specification
m.2 SSD	No M.2 slot
SATA	1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA	1*mSATA slot
Graphics
Processor Graphics	Intel® UHD Graphics 600
HDMI	1HDMI 40962160@30Hz(4K)
VGA	1VGA 19201080@60Hz(1080P)
Power Specification
Adapter Output	DC 12V/5A
Adapter Input	AC 110-240V, 50/60HZ
Consumption	50W
Auto Power On	Support Auto Power On Function
In & Out interfaces
USB Port	2*USB 3.0 port
DC	112V DC In(5.52.5MM)
Video	HDMI 4096 x 2160@30Hz + VGA 1920*1080@60Hz 2 Display Output
Lan Port	4*RJ45 Lan 2.5G Gigabit Ethernet Controller,Intel I225-V

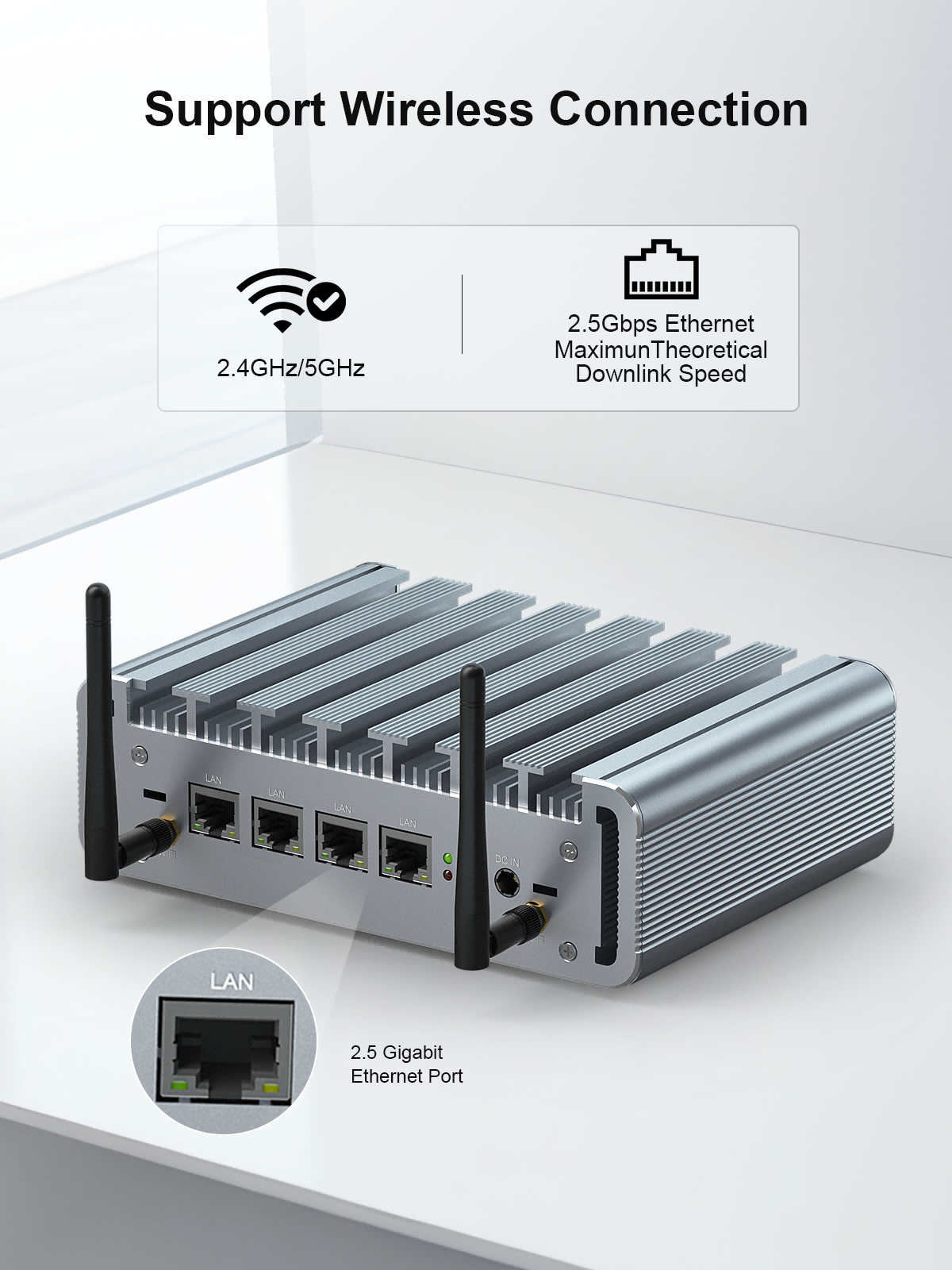

Wi-Fi	Inside Wifi & Bluetooth Combo
Others
System	Support Windows 10/11, Linux
BIOS	Support AUTO POWER ON,Wake On LAN,Watchdog,RTC
SIM	1SIM slot, Support SIMCARD(2515*0.8mm)
MPCIE	1*MPCIE, Support 3G/4G/Wifi module
Work Environment	-10℃--50℃(14F~122F) , 30%--90% Humidity
Case Material	Full Brushed Aluminum Alloy

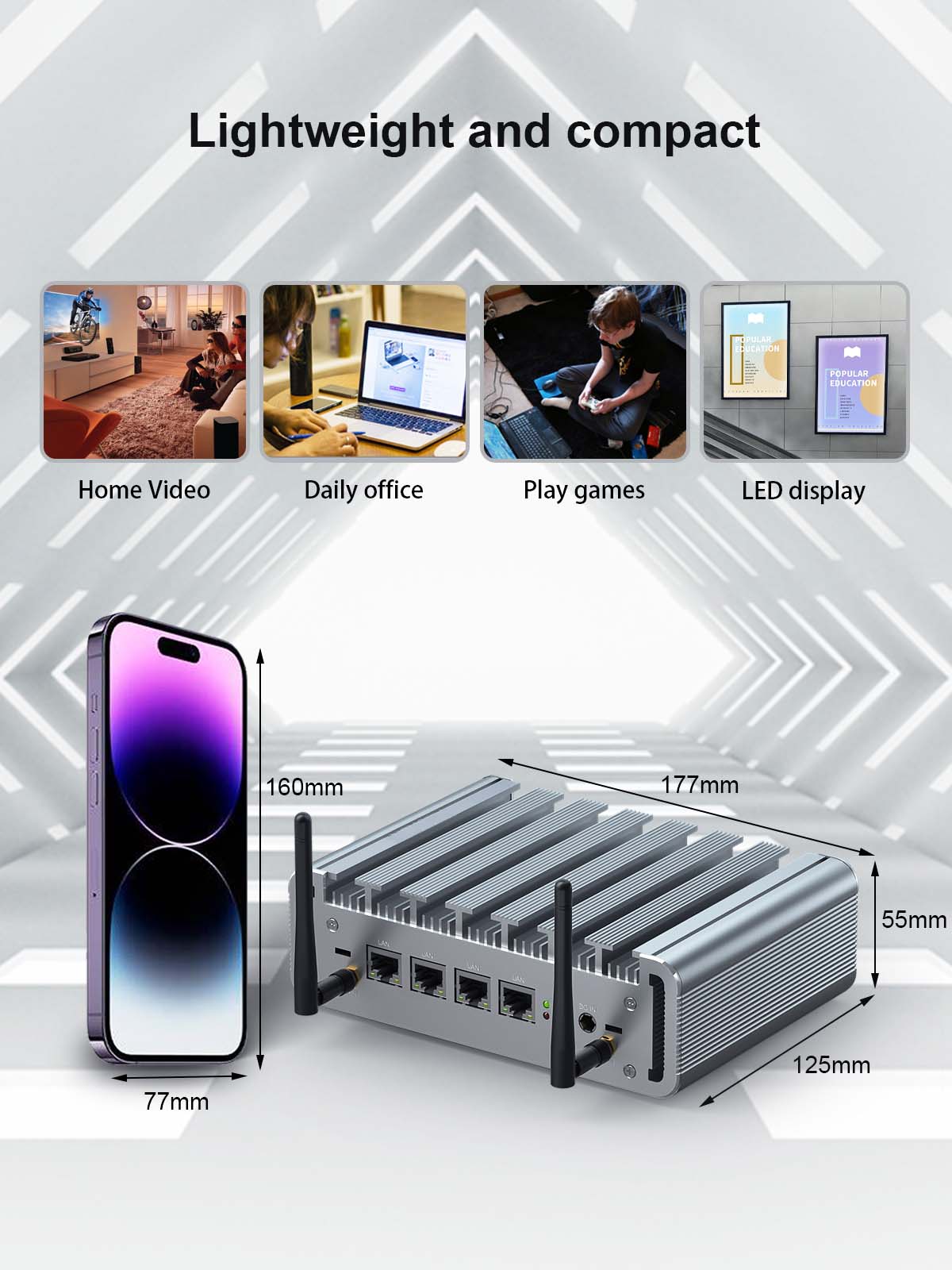

Dimension	PC size 17712555mm Package size 30520575mm
Weight	Net 1.3kg; Gross 2.0kg
