STRHIGP Fanless Industrial PC Computer i5-8350U, 16GB RAM DDR4 512 GB SSD Fanless PC i5, 2*RS232 COM 2*HD/2*RJ45 LAN 8*USB Mini Desktop PC For Home Server/Firewall Application
Dedail
Create quality with science and technology, enrich life with intelligence----SmallPC
SmallPC Newest Fanless Embedded PC H7.
The H7 is equipped with an Intel Core i5-4578U dual-core CPU with excellent low power consumption for energy saving, 8GB of DDR3L memory and support for dual
Processor | |
CPU | Intel Core i5-4278U (3M Cache, 2 Cores 4 Threads, Base Frequency 2.60 GHz Turbo Frequency 3.10 GHz) Intel Core i7-4578U (4M Cache, 2 Cores 4 Threads, Base Frequency 3.00 GHz Turbo Frequency 3.50 GHz) |
TDP | 28W |
CPU Lithography | 22 nm |
Memory Specifications | |
Max Memory Size | 8GB |
Memory Types | 1*DDR3L SO-DIMM 204 pin |
Memory Speed | 1600 MHz |
Memory Channels | Single Channels |
ECC Memory | Don’t support |
Storage Specification | |
m.2 SSD | No M.2 slot |
SATA | 1*SATA3.0 Slot for 2.5 inch HDD/SSD |
mSATA | 1*mSATA slot |
Graphics | |
Processor Graphics | Intel® Iris® Graphics 5100 |
HDMI | 2*HDMI 4096*2160@30Hz(4K) |
Power Specification | |
Adapter Output | DC 12V/5A |
Adapter Input | AC 110-240V, 50/60HZ |
Consumption | 45W |
Auto Power On | Support Auto Power On Function |

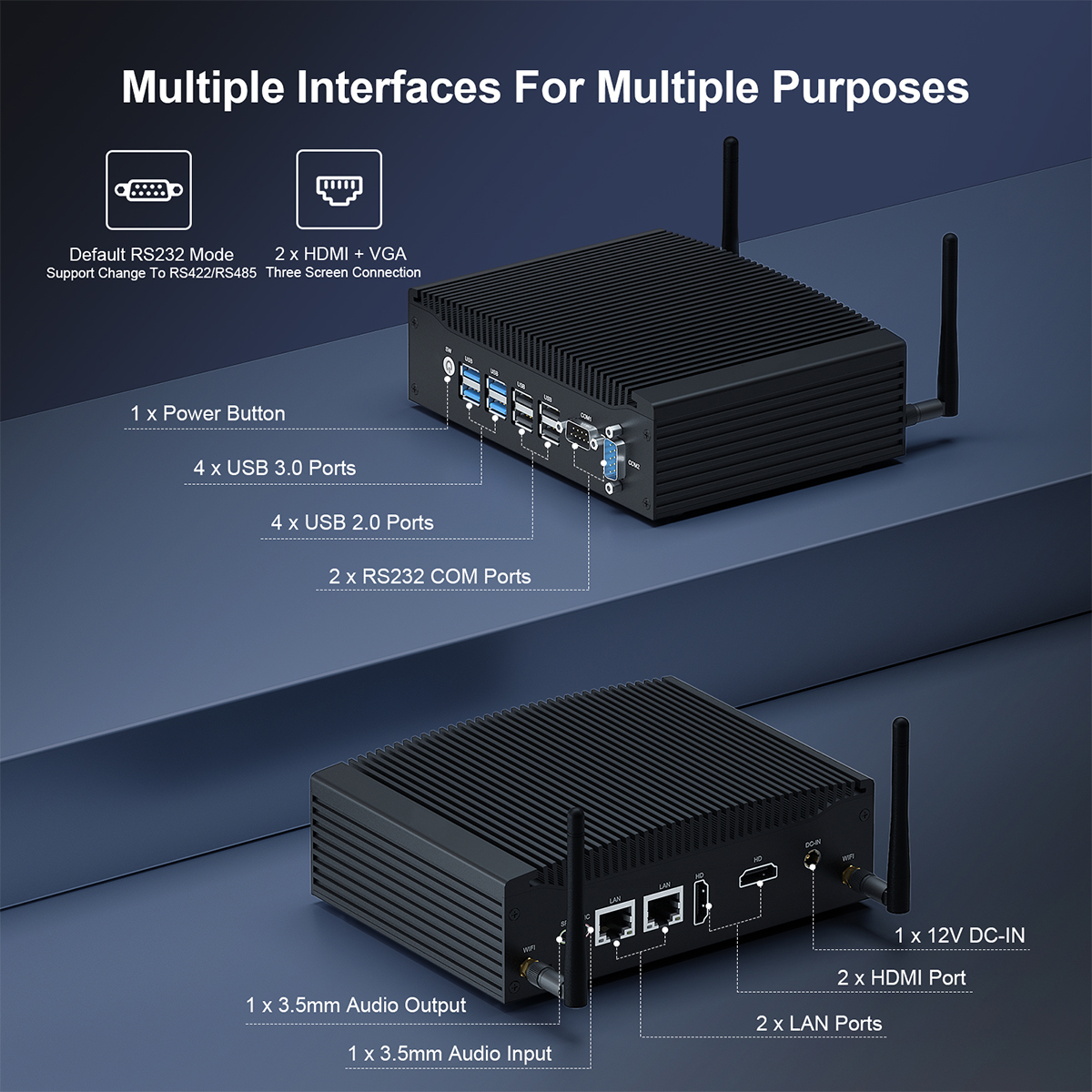

In & Out interfaces | |
USB Port | 4*USB 3.0 port,4*USB 2.0 port |
Audio | 1*3.5mm MIC in & SPK out |
Video | HDMI 4096*2160@30Hz + HDMI 4096*2160@30Hz 2 Display Output |
Audio Cards | USB Audio Device |

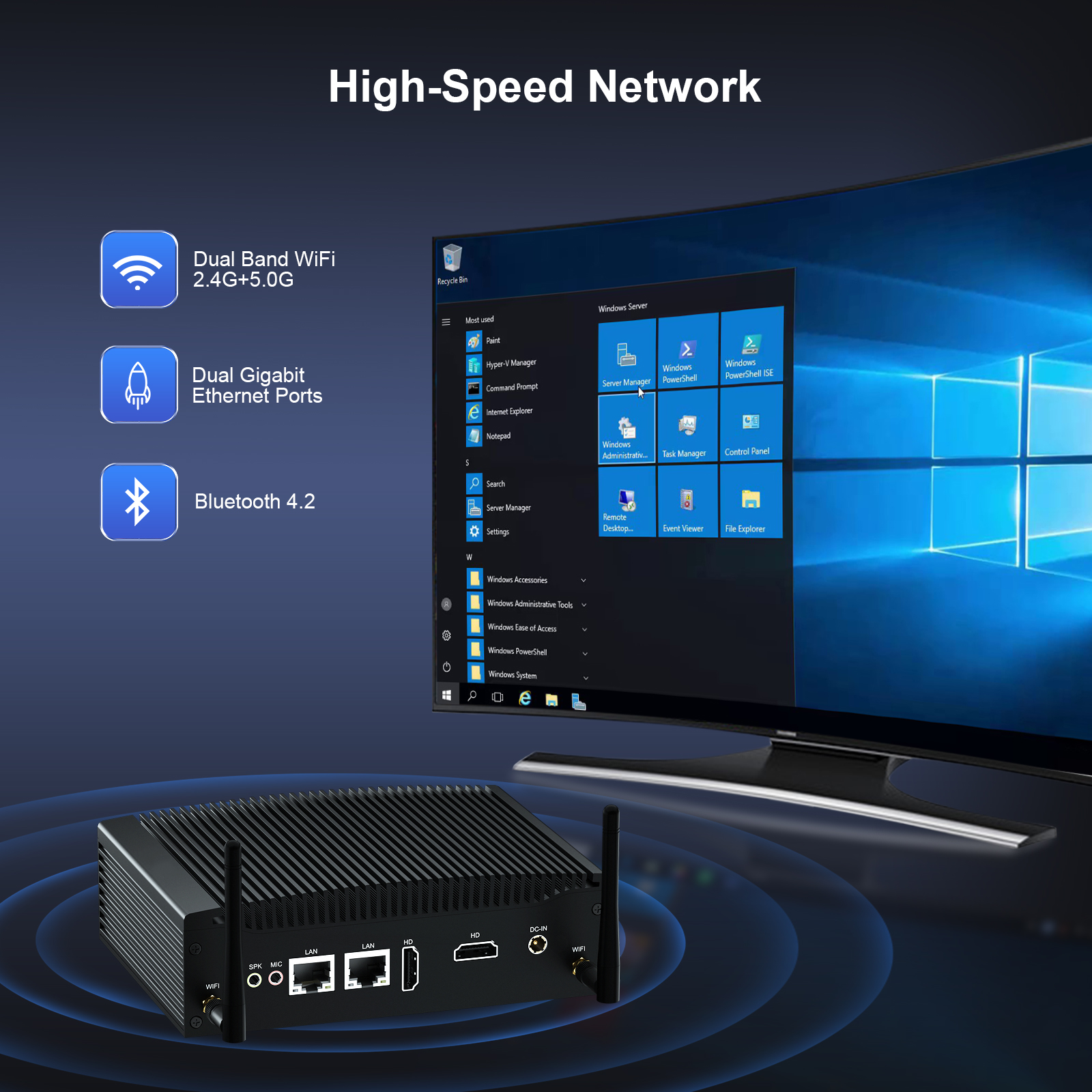

Lan Port | 2*RJ45 Lan Gigabit Ethernet Controller, Realtek 8168/8111 |
Com Port | 2*RS232 Com port |
Wi-Fi | Inside Wifi & Bluetooth Combo |
Others | |
System | Support Windows 7/10, Linux |
BIOS | Support AUTO POWER ON,Wake On LAN,PXE |
MPCIE | 1*MPCIE,Support Wifi Module(26.80*30mm) |
Work Environment | -10℃--60℃(14F~140F) , 30%--90% Humidity |
Case Material | Full Brushed Aluminum Alloy |

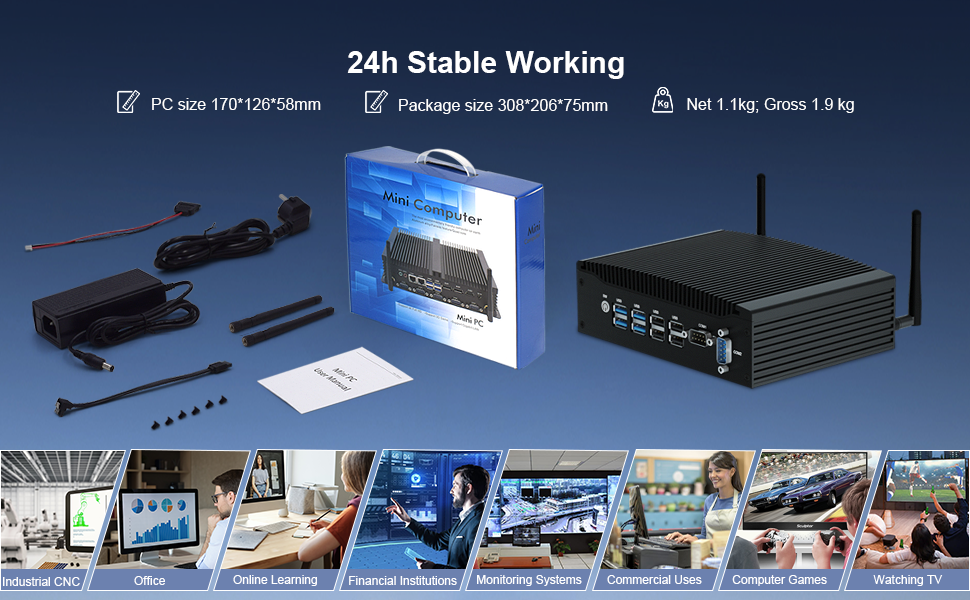

Dimension | PC size 170*126*58mm Package size 308*206*75mm |
Weight | Net 1.1kg; Gross 1.9 kg |
