Industrial Panel PC Core i5 i7 i9 19.1"
HST1901
CPU
Memory
Storage
Quantity
US $531.85 - US $685.36 / unit
SmallPC industrial panel PC is an industrial PC designed for industrial control purposes. It is similar to the industrial fanless mini PC,
but the industrial panel PC can ensure its own stability even in harsher environments, such as the temperature of the product itself,
the smoothness of the screen, and the speed of the system,which remains at the same frequency as in a room temperature environment.
SmallPC Industrial Tablet PC highlights
[Long service life] SmallPC industrial panel PC is made of aluminum alloy, not only the whole body is seamless but also has the characteristics
of low power consumption and fanless, which can minimize the failure as well as simplify the maintenance process and maximize the service cycle.
[Faster and smoother processing speed] Equipped with Intel Core I3 I5 I7 I9 processors, powerful processors make the tablet run more stable
and create excellent visual sense that
[Efficient dustproof, waterproof and shockproof ] All-aluminum body process, fully enclosed housing, effectively blocking dust and moistur
reducing the rate of damage to the machine. Fanless PC are fully enclosed, preventing air and motherboard contact thus improving the life of the
computer, and provide users with a high-level waterproof and dustproof front panel, and provide users with an IP65-level waterproof and dustproof
front panel.
[Green Sustainability] [Green Sustainable Development] TDP is only 15W, more energy saving, small body has big energy.
[More stable performance] Fanless mini PC does not use the old-fashioned fan cooling, but in the heatsink connected to the chassis and the CPU,
the temperature from the heatsink to the chassis, by the entire chassis cooling, so as to avoid the problem of temperature can not be reduced,
and improve the long-term stability of the mini PC
[Certifications and Support]: FCC, CE, ROSH, certifications. 24/7 Support. Functions: RTC wake up / Wake on Lan / Auto Power on (BIOS
setting) / Network boot.

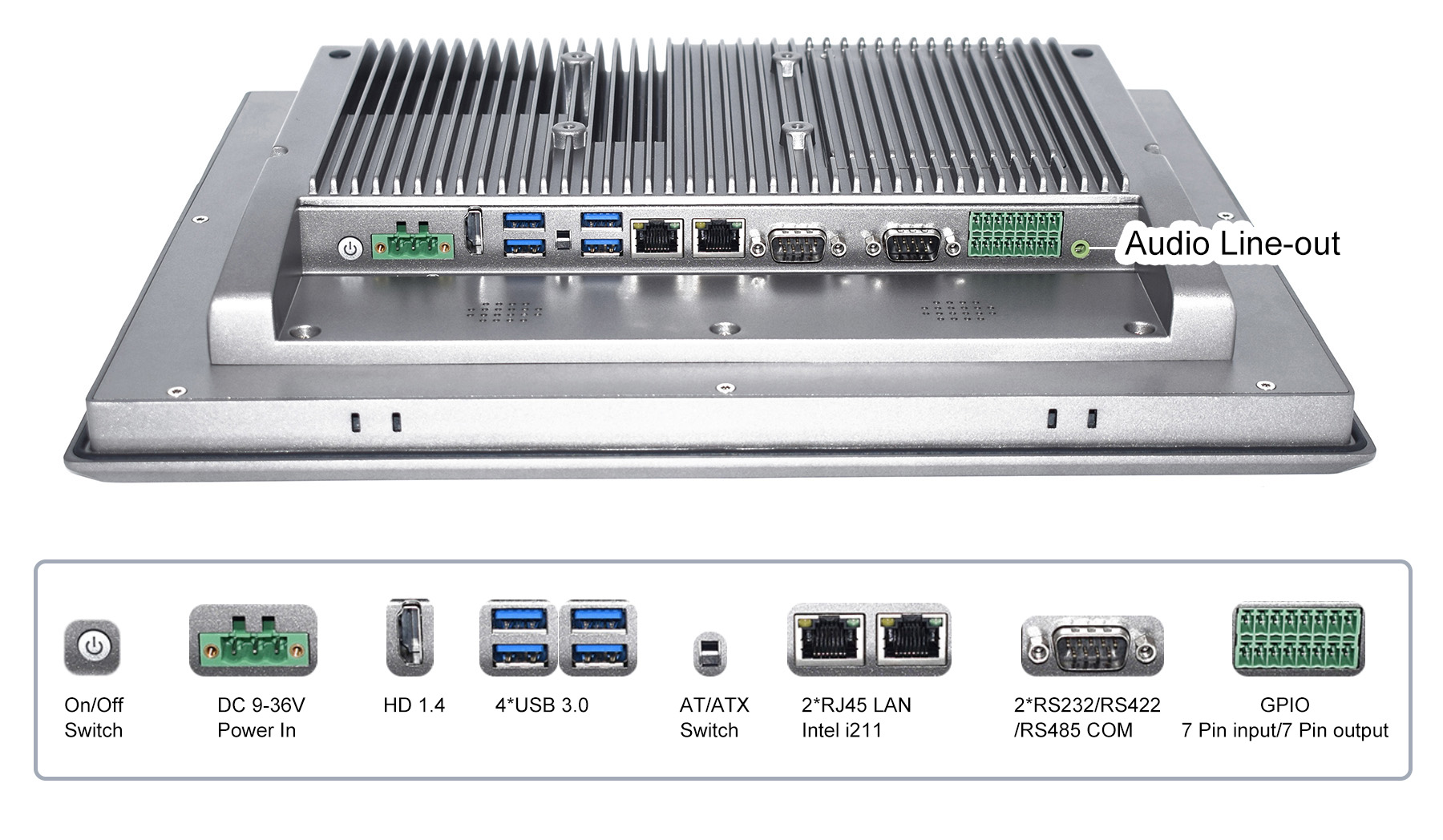

| Processor | Intel Celeron J4125 Intel Core i5 8260U Intel Core i7 8565U Intel Core i5 10210U Intel Core i7 10510U Intel Core i5 1135G7 Intel Core i7 1165G7 |
| Memory | Intel Celeron J4125 1*DDR4 Max 32GB Intel Core i5-i7 2*DDR4 Max 64GB |
| Storage | Support 1*MSATA SSD+1*SATA HDD/SSD+1*M.2 SSD(only for core series) |
| Lan | 2*GbE RJ45 Intel@i211-AT |
| 3*USB 2.0,1*USB 3.0,inside 1*USB2.0 dongle interface | |
| 2*DB9-RS232/422/485 COM | |
| 2*3-wire RS232/485 COM phoenix terminal | |
| 2*3-wire RS232 COM phoenix terminal | |
| Interface Port | 1* Audio line-out |
| 2*8Ω 1W Speak out(optional) | |
| 1*phoenix terminal DC 9-36V Input | |
| 1*AT/ATX Switch | |
| 1*HD output | |
| 1*14bit GPIO(Optional) | |
| WIFI | 1x full height Mini PCI-E,onboard SIM slot, support 3G/4G |
| Resolution | 16.2M Color, 1280*800 ( 1280*600 optional) |
| Panel | TFT LCD (support 10.1” 12.1” 15.1” 17”) |
| Backlight Hour | (LED )30,000 |
| Brightness | 400cd/m² |
| Visual | -85~85°(H) -85~85°(V) |
| Type | 5 wire resistance type |

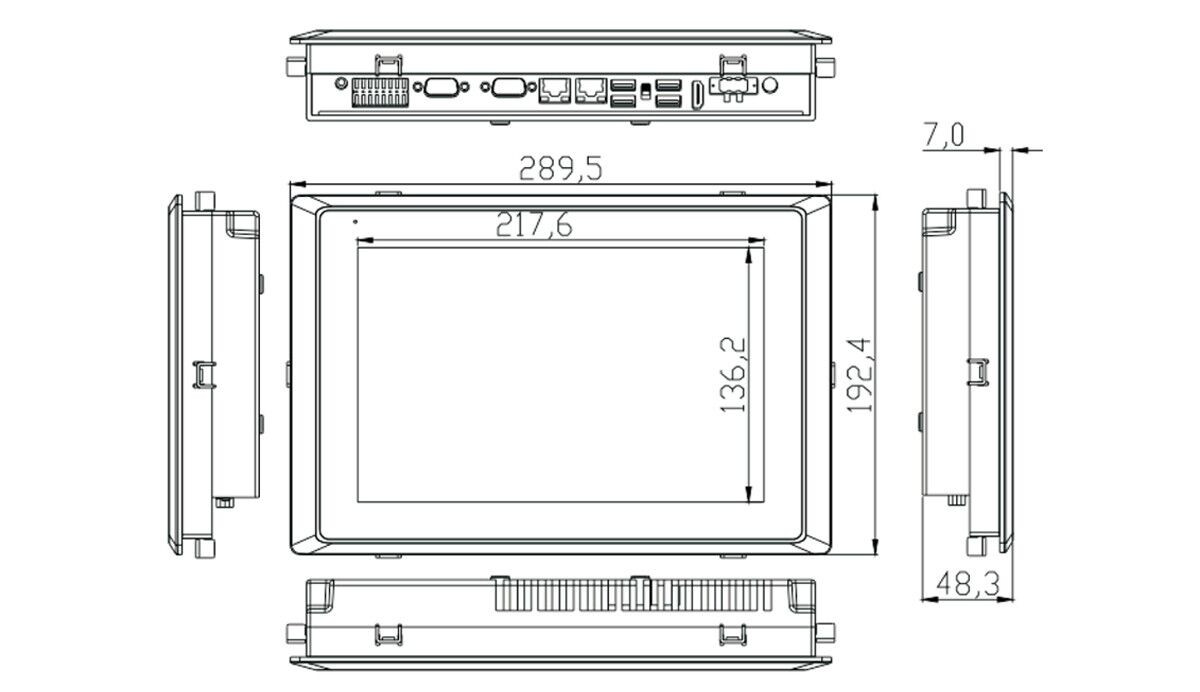

| Dimen | 289.53*192.44*48.3MM(for 10.1”) |
| Weight | NW: 2.7KG, GW: 4.5kg(10.1“ weight, also support 12.1” 15”) |
