Multi-purpose fanless Office mini PC H5
- H5 was originally designed for use in offices, training, homes, schools and other environments, H5 fanless computer chassisall aluminum enclosures perfectly show its security, stability.H5 Mini PC high light:[Triple Screen Display]Built-in DP and HDMI and EDP ports, support Three monitors synchronized display. Enjoy the experience of 4K Ultra HDwith your family. Support 2.4G/5.8G band WiFi.[Efficient dustproof, waterproof and shockproof ] All-aluminum body process, fully enclosed housing, effectively blocking dust and moisture,reducing the rate of damage to the machine. Fanless PC are fully enclosed, preventing air and motherboard contact thus improving the life of the computer.[Memory & Storage] Memory types: Dual DDR4 SO-DIMM Socket. Storage:1 x SATA3.0 for 2.5 inch HDD/SSD,1xmSATA slot.[More stable performance] Fanless mini PC does not use the old-fashioned fan cooling, but in the heatsink connected to the chassis and the CPU,the temperature from the heatsink to the chassis, by the entire chassis cooling, so as to avoid the problem of temperature can not be reduced, and improvethe long-term stability of the mini PC
Processor
CPU
Intel Core i5-8250U (6M Cache, 4 Cores 8 Threads, Base Frequency 1.60 GHz Turbo Frequency 3.40 GHz)
Intel Core i7-8550U (8M Cache, 4 Cores 8 Threads, Base Frequency 1.80 GHz Turbo Frequency 4.00 GHz)
TDP
15W
CPU Lithography
14 nm

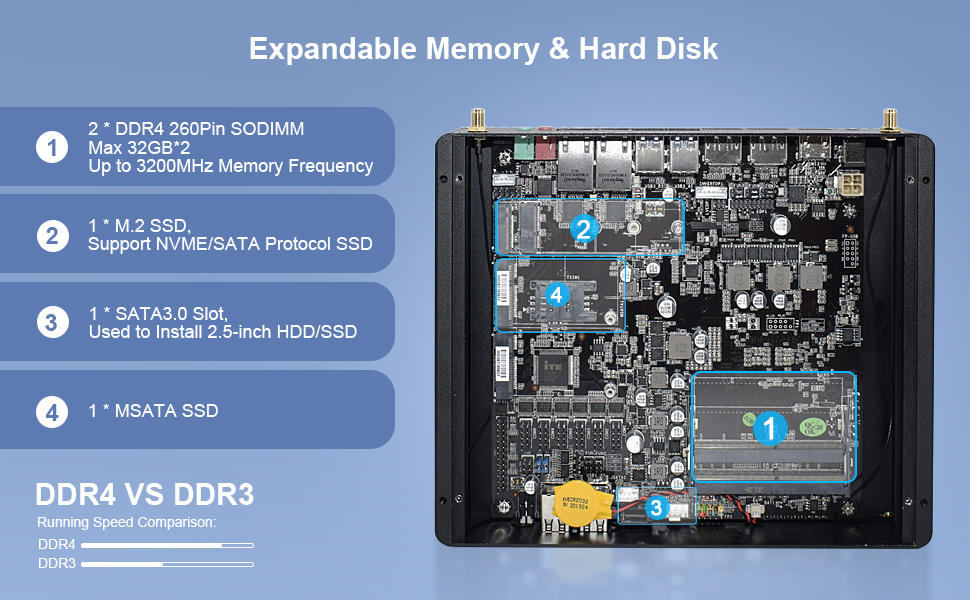

Memory Specifications
Max Memory Size
64GB
Memory Types
260 pin DDR4 SO-DIMM
Memory Channels
Dual Channels
ECC Memory
Don’t support
Storage Specification
m.2 SSD
1*M.2 2280 M KEY PCIE3.0
SATA
1*SATA3.0 Slot for 2.5 inch HDD/SSD
mSATA
1* mSATA slot
Graphics
Processor Graphics
Intel UHD Graphics 620
HDMI
1*HDMI 4096*2160@60Hz(4K)
EDP
1*EDP 4096*2160@60Hz(4K)
DP
1*DP 4096*2160@60Hz(4K)
Power Specification
Adapter Output
DC 12V/6A
Adapter Input
DC 110-240V AC, 50/60HZ
Consumption
52W
Auto Power On
Support Auto Power On Function

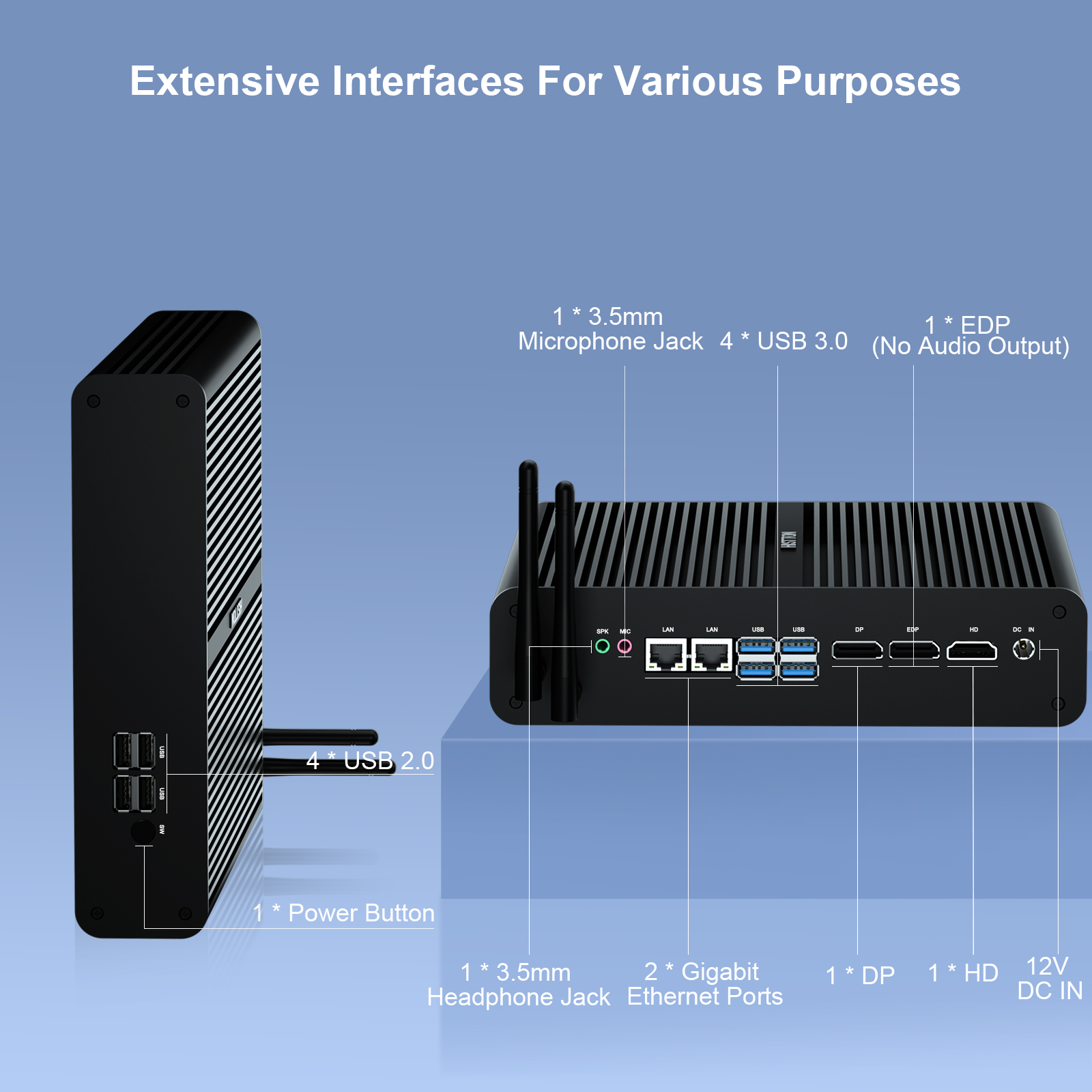

In & Out interfaces
USB Port
4*USB 3.0 port,4*USB 2.0 port
Audio
1*3.5mm MIC in & SPK out
Video
HDMI 4096*2160@60Hz + EDP 4096*2160@60Hz + DP 4096*2160@60Hz 3 Display Output
M.2
1*M.2 E KEY 2230
Audio Cards
Realtek ALC 662/897
Lan Port
2*RJ45 Lan Gigabit Ethernet Controller,Intel I210/I211
Wi-Fi
Inside Wifi & Bluetooth Combo
Others
System
Support Windows 10/11, Linux
BIOS
Support TPM2.0,RAID,AUTO POWER ON,Wake On LAN,Watchdog,PXE/IPXE
SIM
1*SIM slot
MPCIE
1*MPCIE,Support 4G/Wifi module
Work Environment
-10℃--60℃(14F~140F) , 30%--90% Humidity
Case Material
Full Brushed Aluminum Alloy
Dimension
PC size 215*176*55mm
Package size 320*260*80mm
Weight
Net 1.4kg; Gross 2.1 kg
