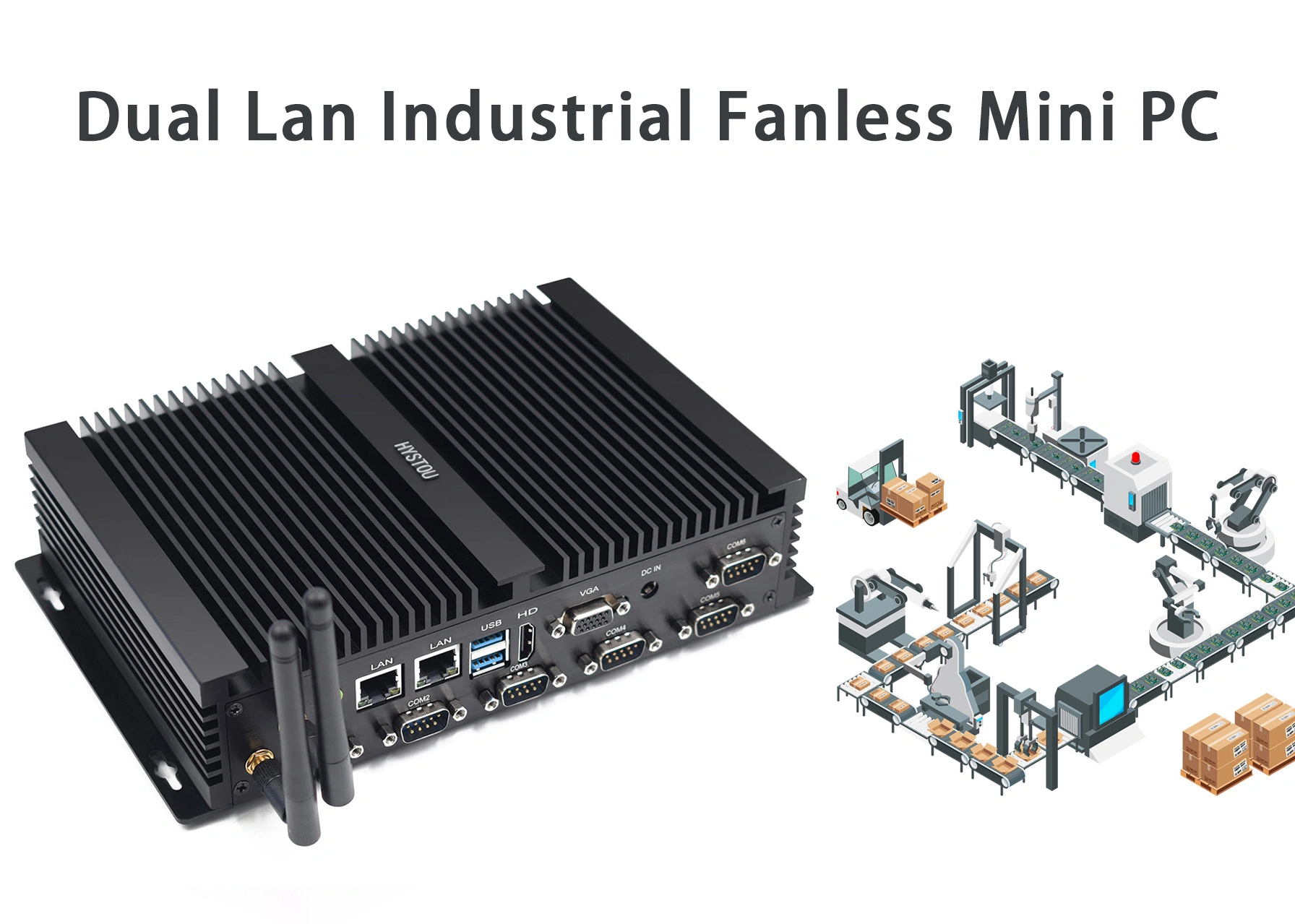

Dual Lan Six USB COM Ports Industrial Fanless Mini PC

K4
CPU
Memory
Storage
Quantity
US $229.63 - US $361.59 / unit
Contact Now
add to cart
 Detail
                                  SmallPC mini PC K4 is a new fanless mini PC from SmallPC, similar to H4 but smaller in size. This mini PC supports more CPU
                                  types and is more comprehensive


                                   K4 Industrial PC Highlight:
                                  [Memory & Storage]  Memory types: DDR3L 2GB 4GB 8GB. Storage:1 x SATA3.0 for 2.5 inch HDD/SSD,1xmSATA slot.
                                  [Efficient dustproof, waterproof and shockproof ] All-aluminum body process, fully enclosed housing, effectively blocking dust and moisture,
                                  reducing the rate of damage to the machine. Fanless PC are fully enclosed, preventing air and motherboard contact thus improving the life of the
                                  computer.
                                  [Quiet, Energy Efficient, Portable]  The process design of fanless PC effectively solves the noise problem. The novel form factor is the secret to
                                  fast cooling. It dissipates heat faster and keeps the best performance at all time
                                  [More stable performance]  Fanless mini PC does not use the old-fashioned fan cooling, but in the heatsink connected to the chassis and the CPU
                                  the temperature from the heatsink to the chassis, by the entire chassis cooling, so as to avoid the problem of temperature can not be reduced, and
                                  improve the long-term stability of the mini PC
                                  [Dual Screen Display] Built-in HD+VGA Dual display, support two monitors synchronized display. Enjoy the experience of 4K Ultra HD with
                                  your family. Support 2.4G/5.8G band WiFi.
                                           [Green Sustainability] [Green Sustainable Development] TDP is only 15W, more energy saving, small body has big energy.
Mini PCMini PC

Processor

CPU

Intel Core i7-4500U (4M Cache, 2 Cores 4 Threads, Base Frequency 1.80 GHz Turbo Frequency 3.00 GHz)

Intel Core i5-4200U (4M Cache, 2 Cores 4 Threads, Base Frequency 1.60 GHz Turbo Frequency 2.60 GHz)

Intel Celeron J4125  (4M Cache, 4 Cores 4 Threads, Base Frequency 2.00 GHz Turbo Frequency 2.70 GHz)

TDP

10W

CPU Lithography

14 nm

Memory Specifications

Max Memory Size

16GB

Memory Types

1*DDR4 SO-DIMM 260 pin

Memory Channels

Single Channels

ECC Memory

Don’t support

Storage Specification

m.2 SSD

No M.2 slot

SATA

1*SATA3.0 Slot for 2.5 inch HDD/SSD

mSATA

1*mSATA slot

Graphics

Processor Graphics

   Intel UHD Graphics 600

HDMI

1*HDMI 4096*2160@30Hz(4K)

VGA

1*VGA 1920*1080@60Hz(1080P)

Power Specification

Adapter Output

DC 12V/5A

Adapter Input

AC 110-240V, 50/60HZ

Consumption

50W

Auto Power On

Support Auto Power On Function

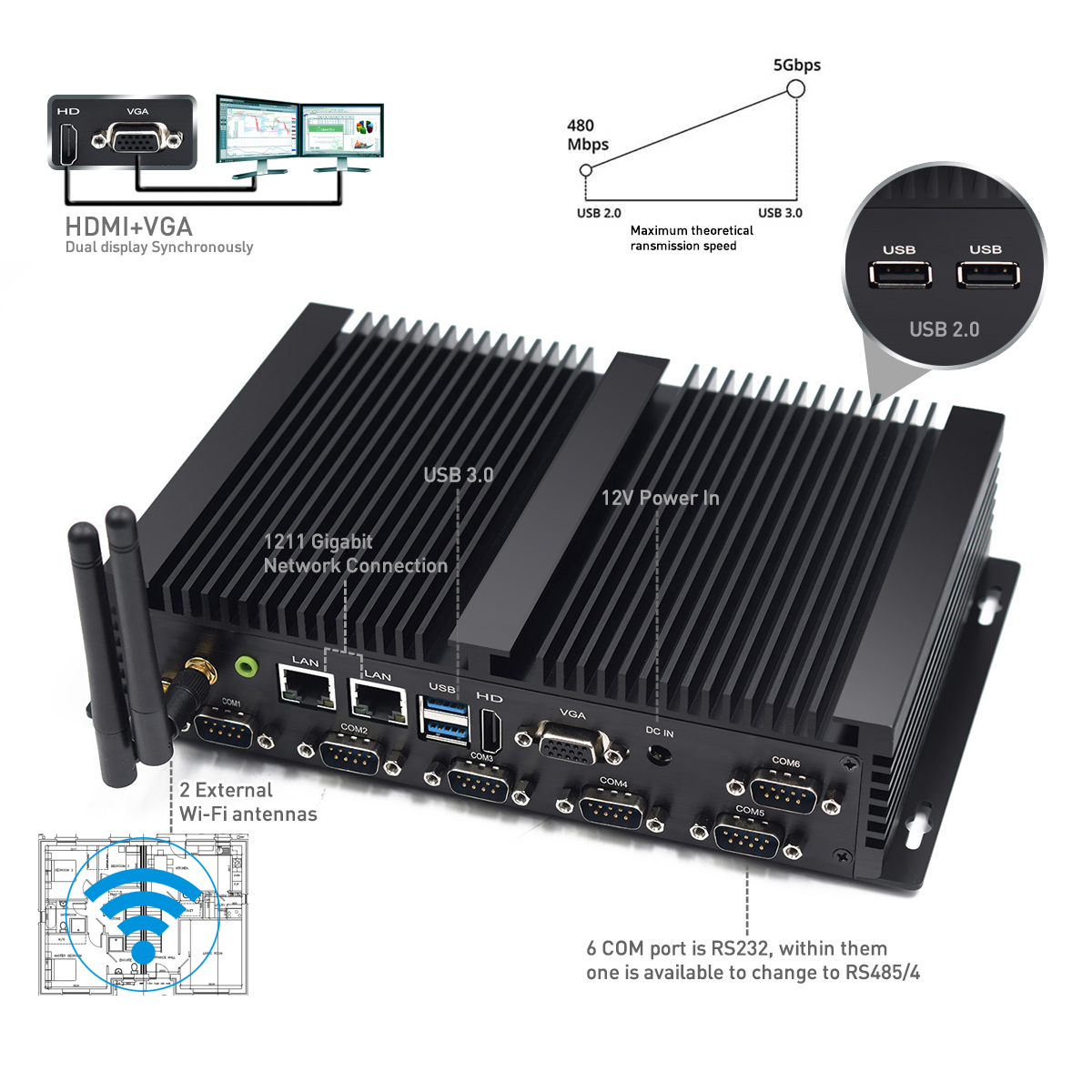

In & Out interfaces

USB Port

2*USB 3.0 port,2*USB 2.0 port

Audio

1*3.5mm MIC in & SPK out

Video

HDMI 4096*2160@30Hz + VGA 1920*1080@60Hz 2 Display Output

Audio Cards

Realtek ALC 662

Lan Port

2*RJ45 Lan Gigabit Ethernet Controller,Intel I210

Com Port

6*RS232 Com port/5*RS232 Com port, 1*RS422 Com port or 1*RS485 Com port

Wi-Fi

Inside Wifi & Bluetooth Combo

Others

System

Support Windows 10, Linux

BIOS

Support AUTO POWER ON,Wake On LAN,PXE

MPCIE

1*MPCIE,Support Wifi module

Work Environment

-10℃--60℃(14F~140F) , 30%--90% Humidity

Case Material

Full Brushed Aluminum Alloy

Dimension

PC size 240*150*57mm

Package size 320*260*80mm

Weight

Net 1.4kg; Gross 2.0 kg
